Signal Waveform & Data

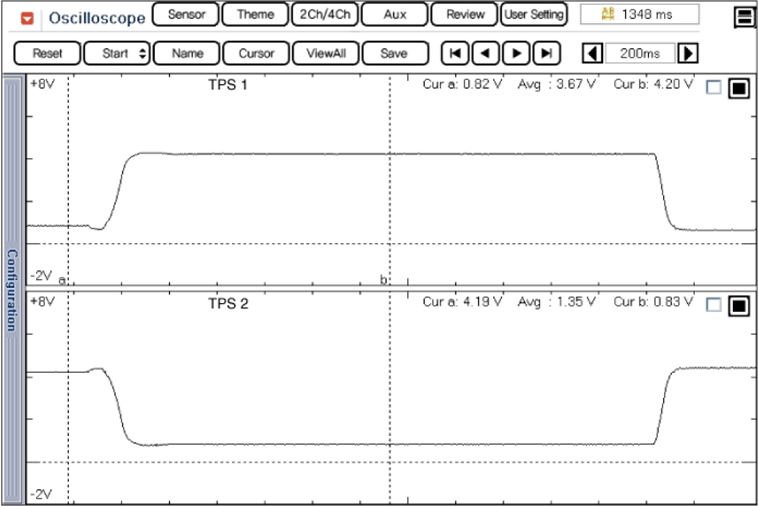

Fig 1: Normal Signal Waveform Of TPS1 & TPS2 (With No Accel Padal Depressed Under IG ON Condition)
G08324731Courtesy of KIA MOTORS AMERICA, INC.
