Diagnostic Circuit Diagram

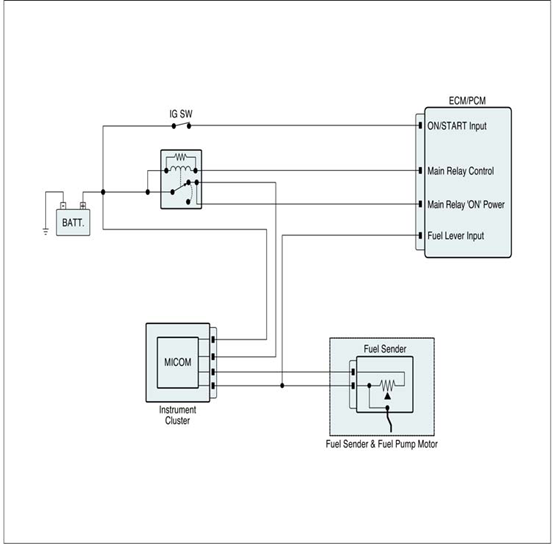

Fig 1: Fuel Sender And Fuel Pump Motor - Circuit Diagram
G08325009Courtesy of KIA MOTORS AMERICA, INC.

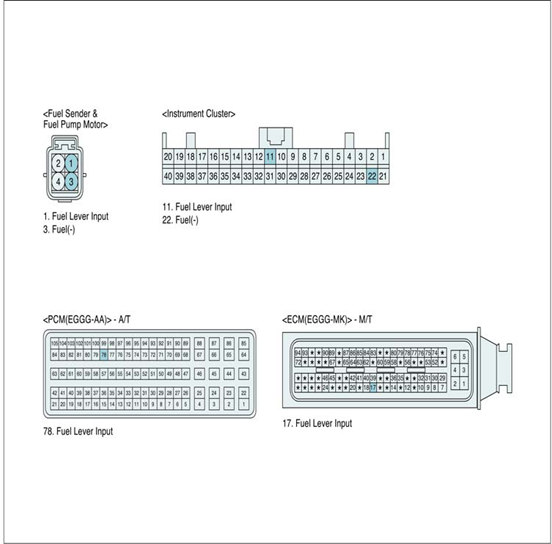

Fig 2: Identifying Fuel Sender And Fuel Pump Motor Connector Terminals
G08325010Courtesy of KIA MOTORS AMERICA, INC.
