Diagnostic Circuit Diagram

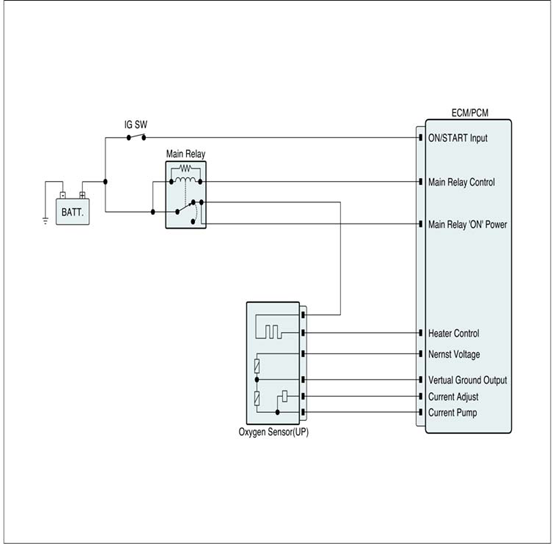

Fig 1: Oxygen Sensor - Circuit Diagram
G08325215Courtesy of KIA MOTORS AMERICA, INC.

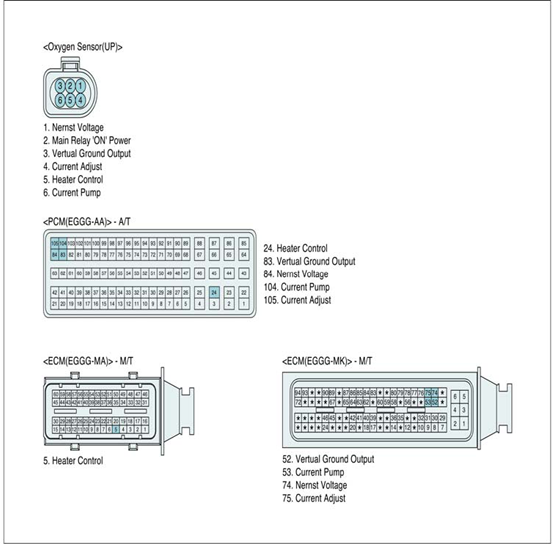

Fig 2: Identifying Oxygen Sensor Connector Terminals
G08325216Courtesy of KIA MOTORS AMERICA, INC.
