Engine Control System Diagnosis (1 Of 3)
>>
DTC P0197: Engine Oil Temperature Sensor Low Input
>>
General Information
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data
Fig 1: Scantool Display - Normal Data Of IATS & ECTS & EOTS At Ig On
Courtesy of KIA MOTORS AMERICA, INC.

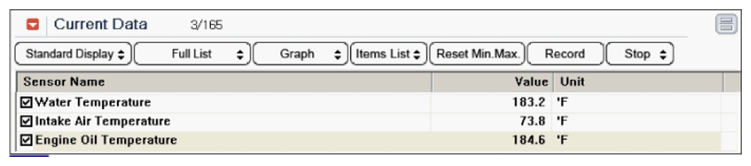

Fig 2: Scantool Display - Normal Data Of IATS & ECTS & EOTS After Warming Up
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Screen Display - Normal Waveform Of EOTS
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
