Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the ECM Connector (A).

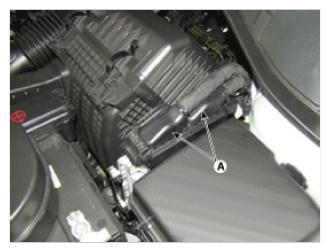

Fig 1: Identifying ECM Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery.
(Refer to "BATTERY ")
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the mounting bolt (A) and nuts (B), and then remove the ECM (C).

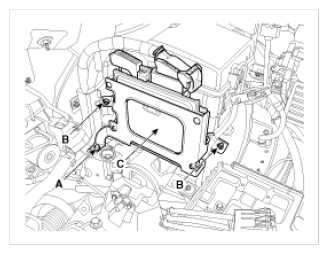

Fig 2: Identifying ECM Mounting Bolt And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
After removing the installation nuts (A) and screws (B), remove the ECM (C) from the bracket.

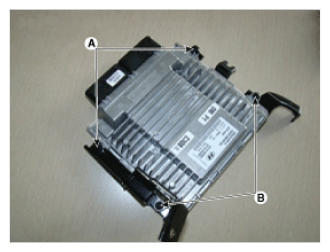

Fig 3: Identifying ECM, Nuts And Screws
Courtesy of KIA MOTORS AMERICA, INC.
