Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Lift the vehicle.
Disconnect the canister close valve connector (A).
Disconnect the ventilation tube quick-connector (B) from the fuel tank air filter and canister close valve.

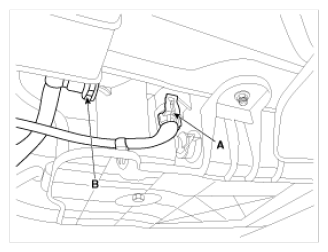

Fig 1: Identifying Ventilation Tube Quick-Connector And Canister Close Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vapor tube quick-connector (A).
Remove the canister assembly bracket (D) after removing the mounting bolts (B) and nut (C).

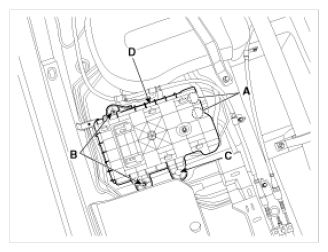

Fig 2: Identifying Vapor Tube Quick-Connector, Canister Assembly Bracket And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the canister braket (B) installation bolt (A).

Fig 3: Removing Canister Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank air filter & canister close valve assembly (A) after rotating it in the direction of the arrow in the figure.

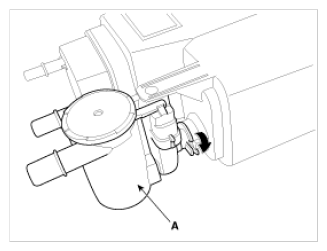

Fig 4: Removing Fuel Tank Air Filter & Canister Close Valve Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.

Fig 5: Identifying Canister Close Valve Lever
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Identifying Canister Close Valve And Fuel Tank Air Filter
Courtesy of KIA MOTORS AMERICA, INC.
