Repair procedures: Removal

Remove the fuel pump. (Refer to "FUEL PUMP ")
Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

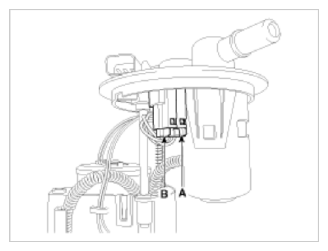

Fig 1: Identifying Electric Pump Wiring And Fuel Sender Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel sender (A) in the direction of an arrow.

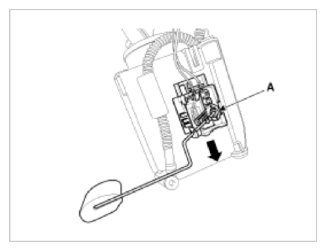

Fig 2: Removing Fuel Sender
Courtesy of KIA MOTORS AMERICA, INC.
