Signal Waveform & Data

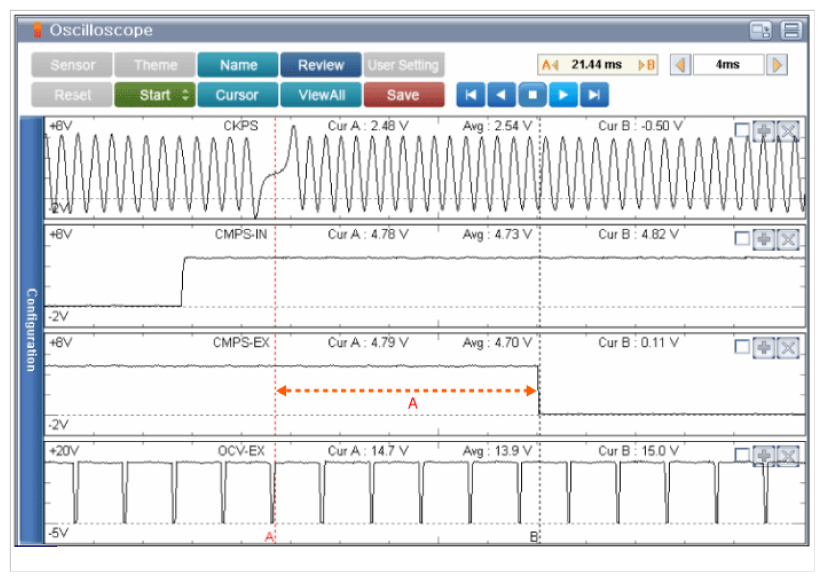

Fig 1: Normal Waveforms Of OCV-In & CKPS, CMPS At Engine Idle
G09776127Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Exhaust side) synchronization - There are about 16~17 teeth between the CKPS missing tooth and CMPS signal.
