System Inspection

Resetting Adaptive Values
1. Connect GDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management " about related DTC with GDS.

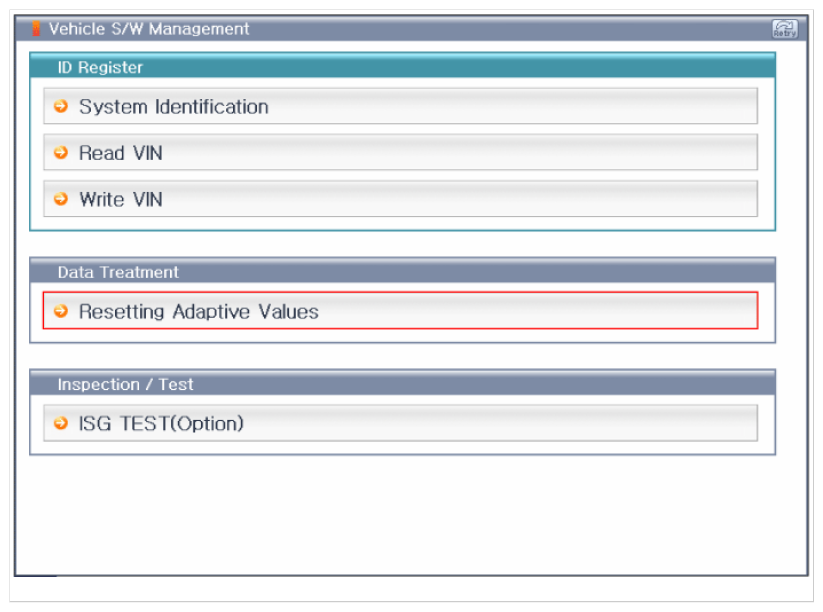

  Fig 1: Resetting Adaptive Values Screen
  Courtesy of KIA MOTORS AMERICA, INC.

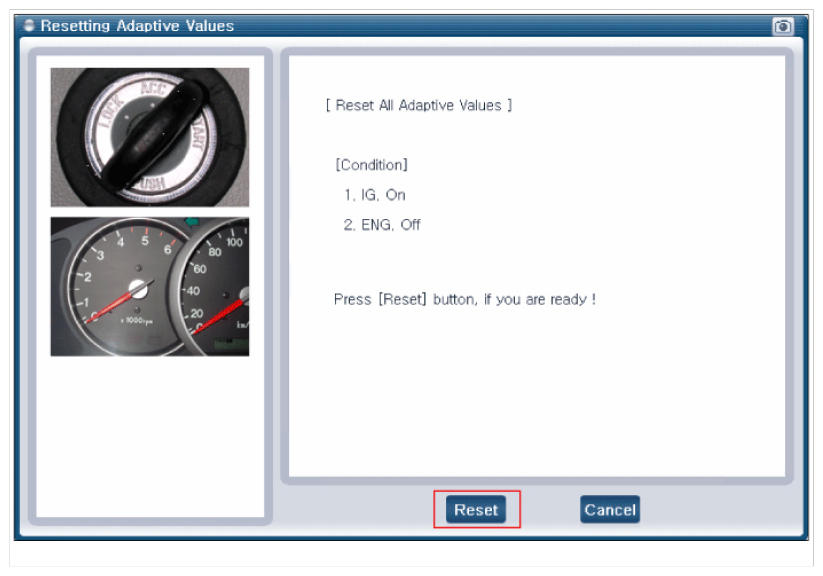

  Fig 2: Press Reset Button Screen
  Courtesy of KIA MOTORS AMERICA, INC.

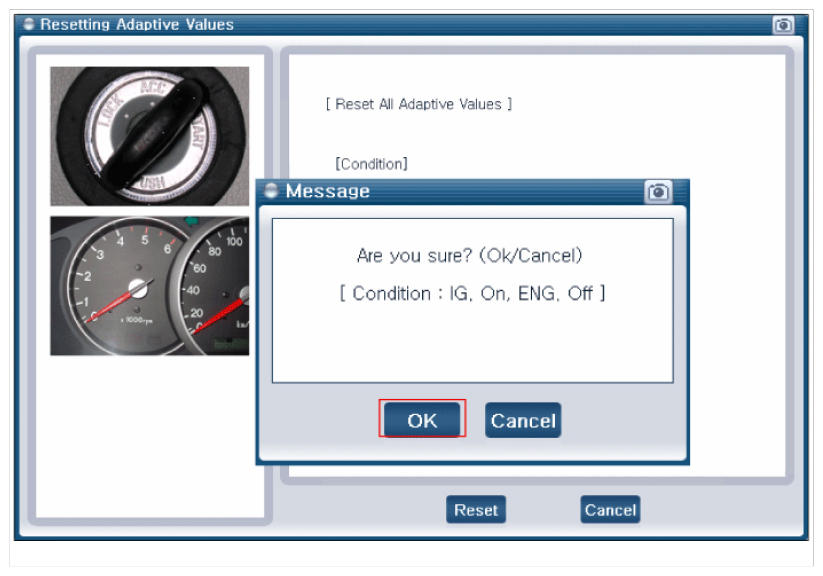

  Fig 3: Press OK Button Screen
  Courtesy of KIA MOTORS AMERICA, INC.

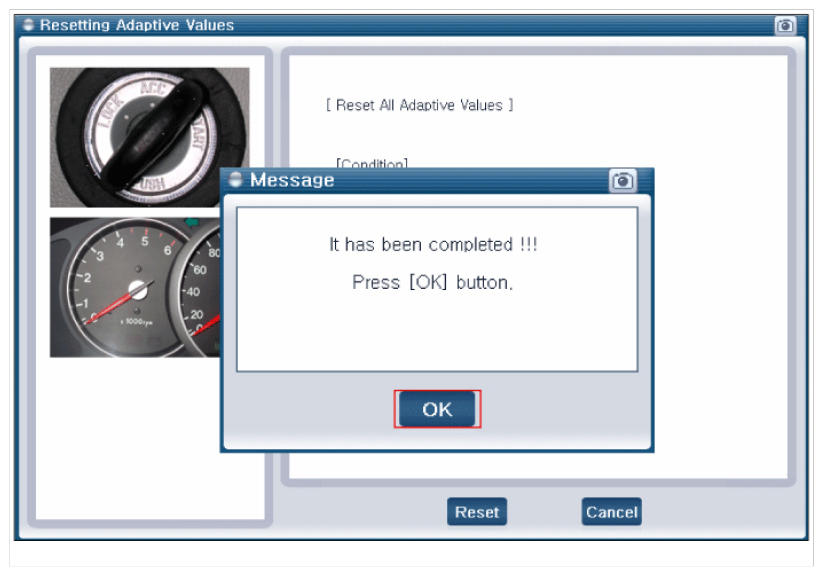

  Fig 4: Resetting Adaptive Values Completed Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
