Component Inspection

Perform HO2S (S1) Heater Actuation Test
1. Connect GDS to Data Link Connector (DLC).
2. ENG "RUN"
3. Perform "Actuation Test " for HO2S (S1) Heater.

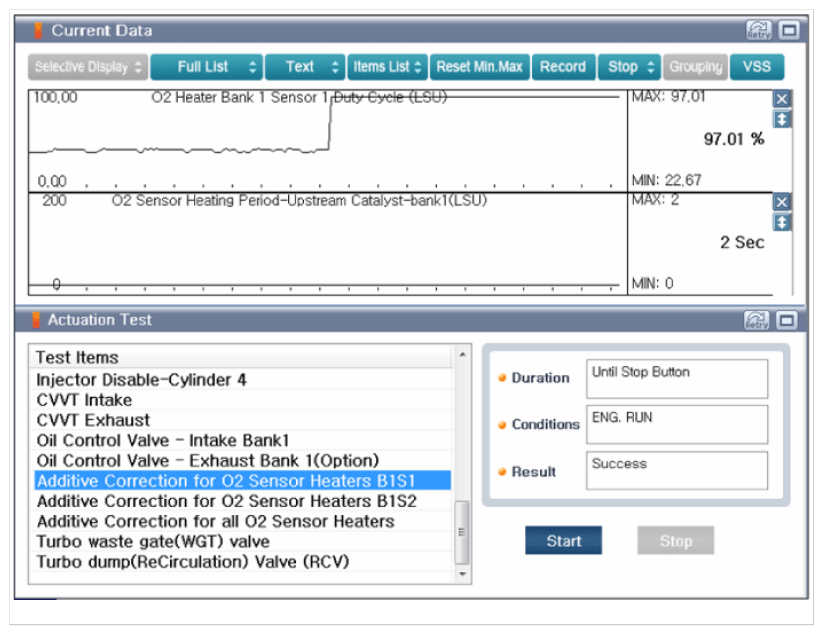

  Fig 1: Additive Correction For O2 Sensor Heaters B1S1 Actuation Test Screen
  Courtesy of KIA MOTORS AMERICA, INC.

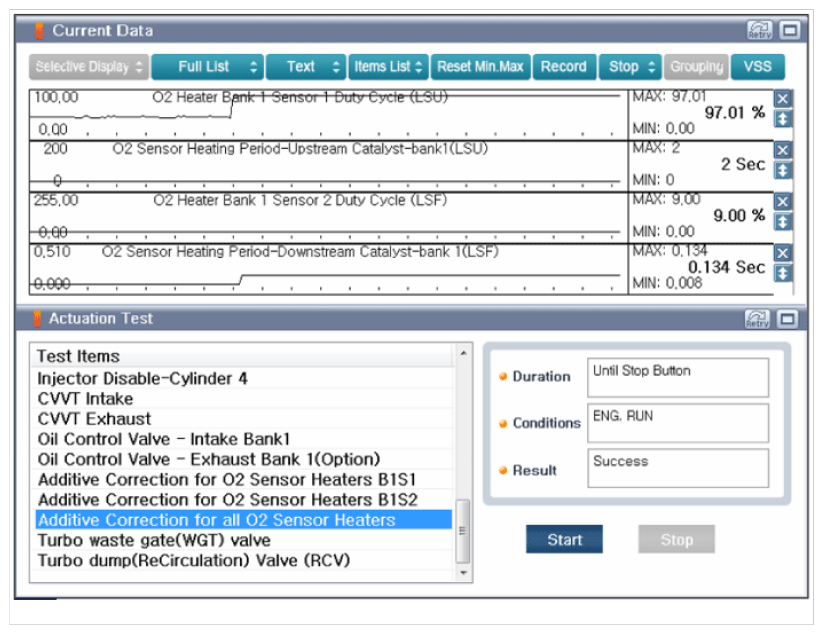

  Fig 2: Additive Correction For O2 Sensor Heaters Actuation Test Screen
  Courtesy of KIA MOTORS AMERICA, INC.
Inspect HO2S (S1) Heater
1. IG Key "OFF".
2. Disconnect HO2S (S1) connector.
3. Measure resistance between Pin No. 2 (Power) terminal and Pin No. 5 (Control) terminal of the HO2S (S1) Heater. (Component Side)
  Specification: Approx. 3.2Ω ± 0.8Ω at 20°C (68°F)
Confirm Part Inspection
1. Does the HO2S (S1) Heater operate properly? (Check variation)
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Carefully re-do this troubleshooting guide steps.
  - If problem still occurs, replace HO2S (S1) and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
