Engine Control System Diagnosis (1 Of 2) - 1.6L
>>
DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

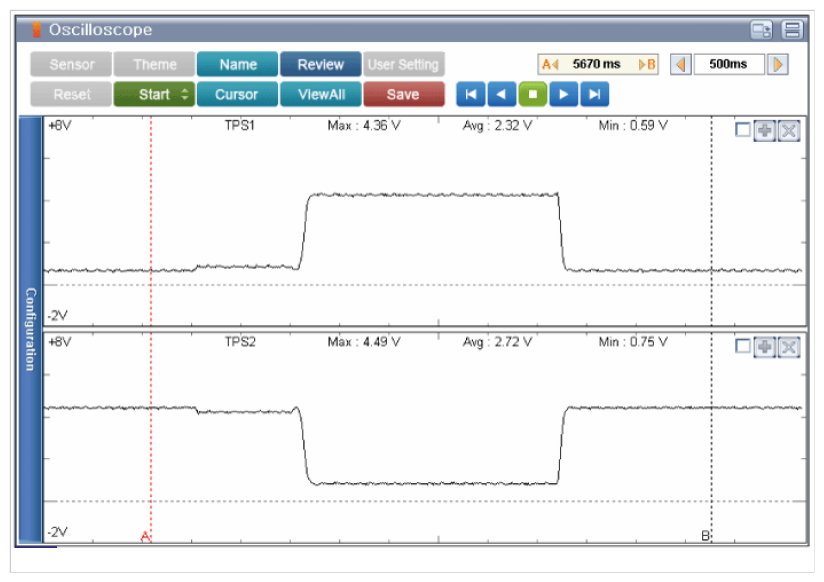

Fig 1: TPS Signal Waveforms - Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
