System Inspection

Resetting Adaptive Values
1. Connect GDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management" about related DTC with GDS.

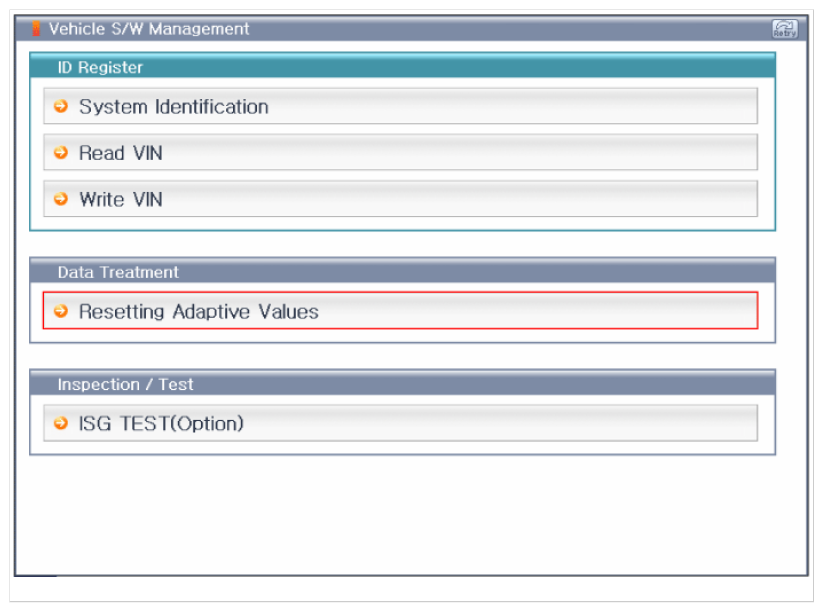

  Fig 1: Resetting Adaptive Values For Resetting TPS Values Screen
  Courtesy of KIA MOTORS AMERICA, INC.

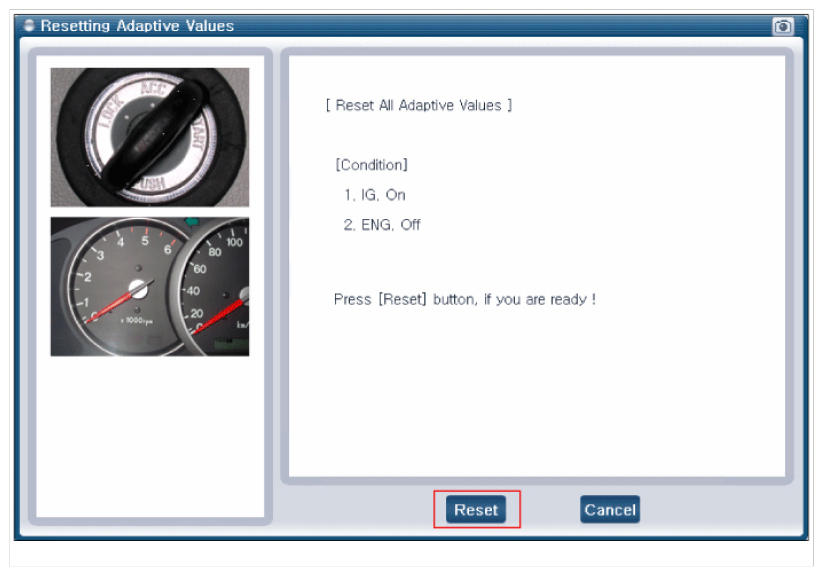

  Fig 2: Reset Button To Progress For Next Procedure Screen
  Courtesy of KIA MOTORS AMERICA, INC.

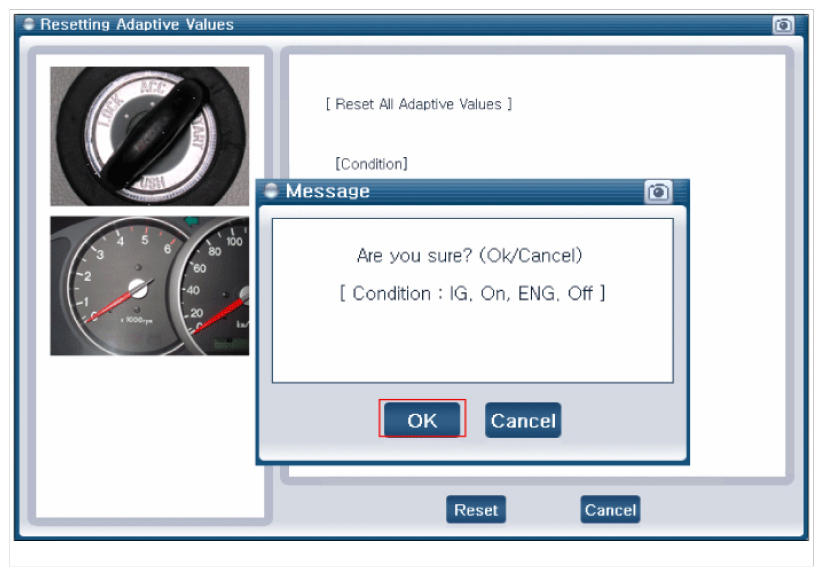

  Fig 3: OK Button (IG ON, ENG OFF) Screen
  Courtesy of KIA MOTORS AMERICA, INC.

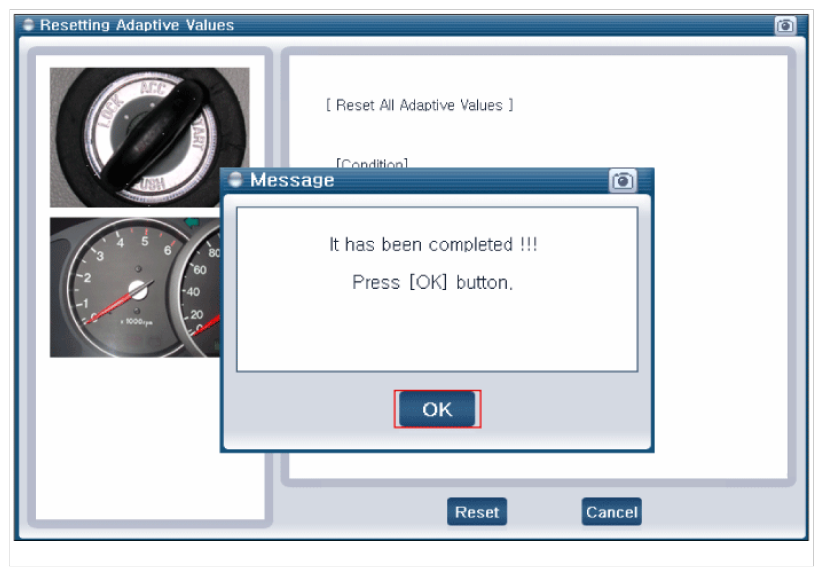

  Fig 4: Resetting Adaptive Values Completion Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
