Clock Spring (Remote Control) Connector End View (M03-R)

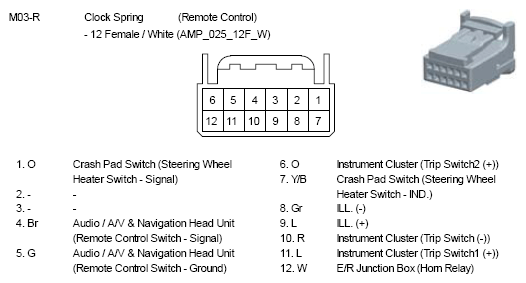

Fig 1: Clock Spring (Remote Control) Connector End View (M03-R)
Courtesy of KIA MOTORS AMERICA, INC.
