Smart Key Control Module Connector End View (M32-A)

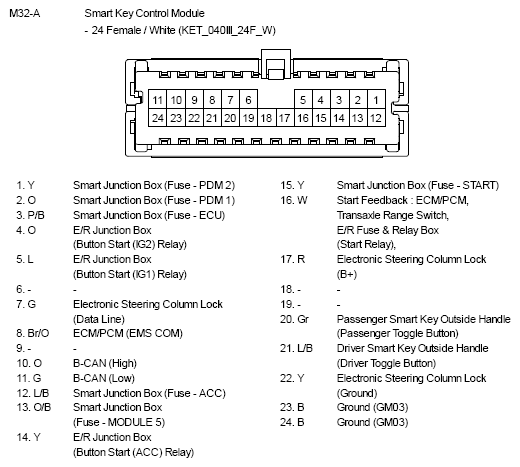

Fig 1: Smart Key Control Module Connector End View (M32-A)
G10792690Courtesy of KIA MOTORS AMERICA, INC.
