Smart Key Control Module Connector End View (M32-B)

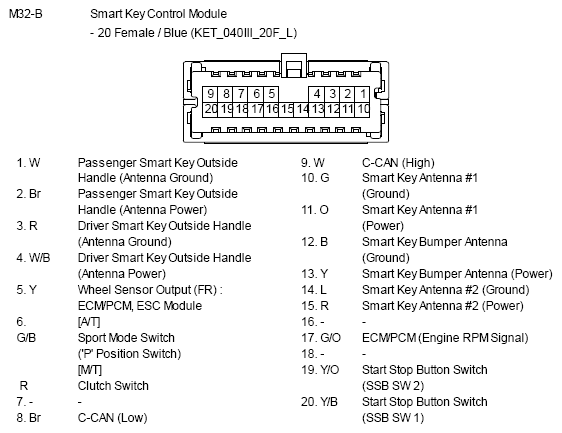

Fig 1: Smart Key Control Module Connector End View (M32-B)
G10792691Courtesy of KIA MOTORS AMERICA, INC.
