Charging System - 1.6L: Battery: Troubleshooting

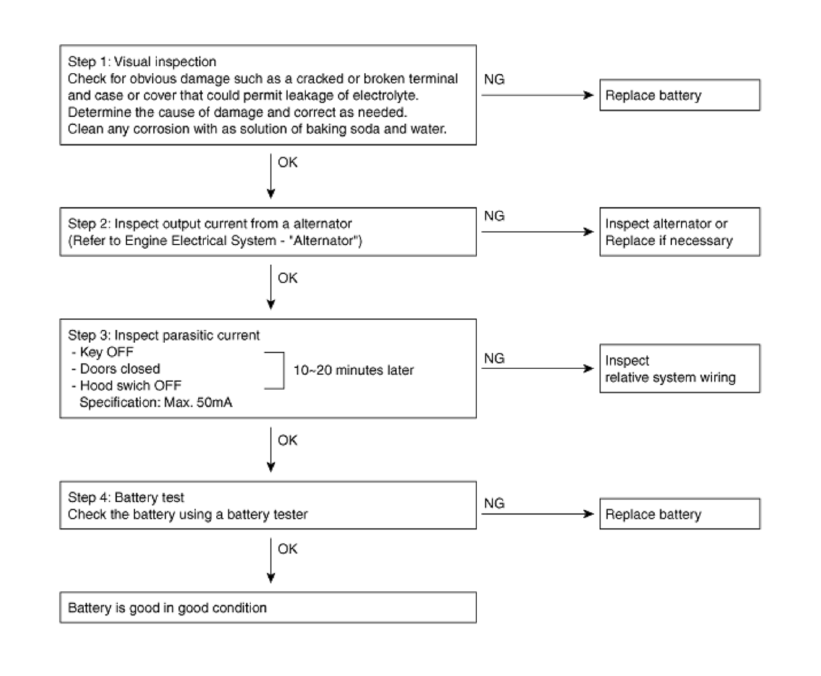

Fig 1: Troubleshooting Flow Chart

G09772864

Courtesy of KIA MOTORS AMERICA, INC.
