Signal Waveform & Data

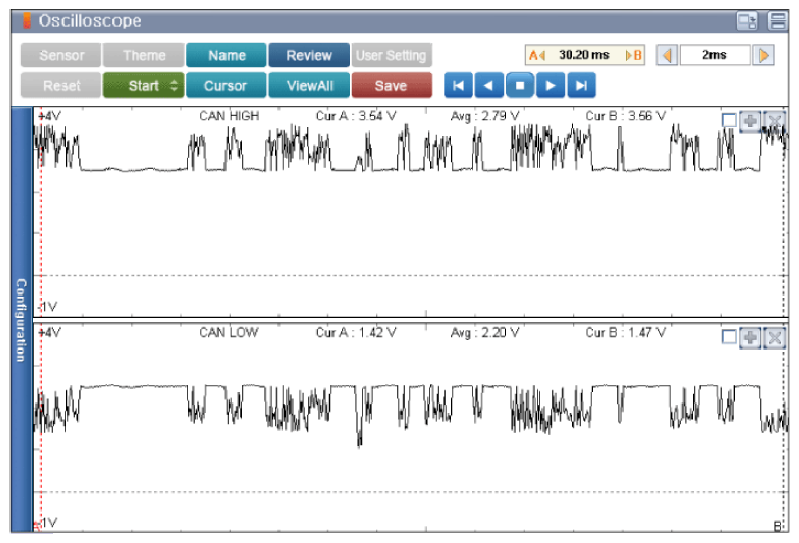

Fig 1: Display - C-CAN Low And High Signal Waveform Screen
G09775641Courtesy of KIA MOTORS AMERICA, INC.

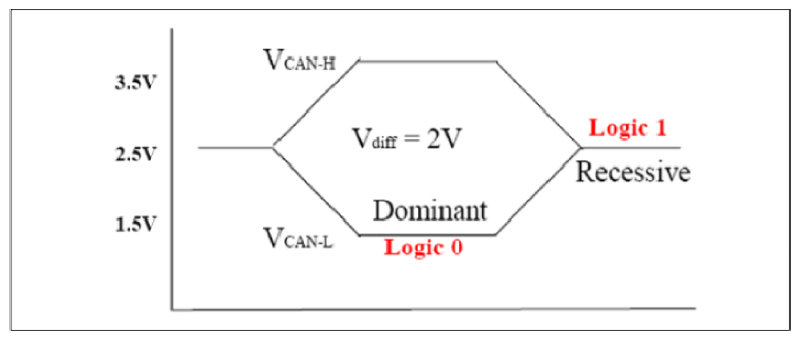

Fig 2: Display - C-CAN BUS Voltage Level Screen (High Speed CAN)
G09775642Courtesy of KIA MOTORS AMERICA, INC.
