Monitor GDS Data

Cluster module variant coding
1. Verify vehicle options and have VIN code in hand.
2. Perform "CLU Variant Coding" in the "Vehicle S/W Management " with GDS.
3. Check for DTCs in the system.
4. Is the DTCs stored in the system as a present?

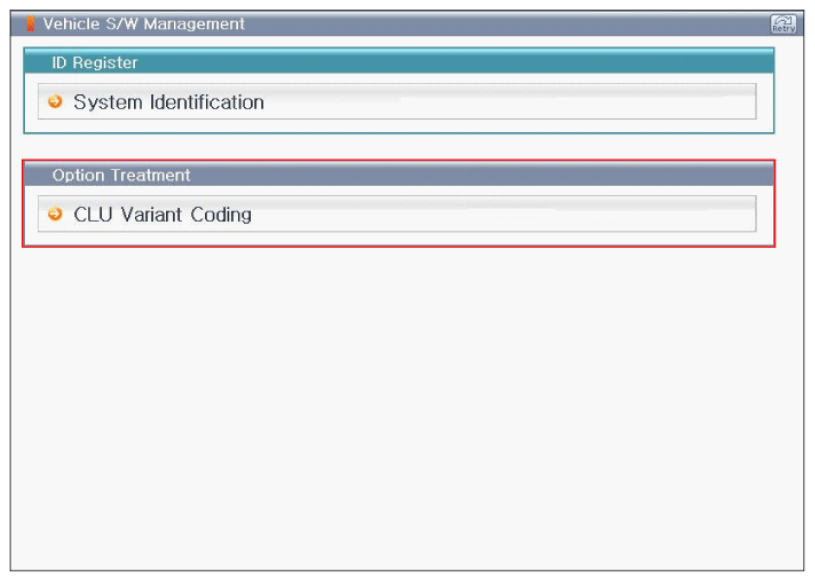

  Fig 1: Display - Cluster Module Variant Coding Screen
  Courtesy of KIA MOTORS AMERICA, INC.

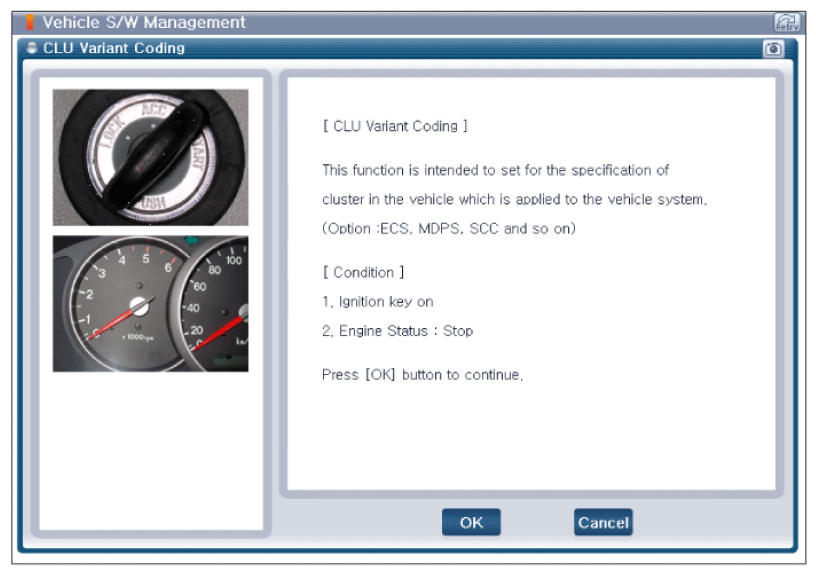

  Fig 2: Display - Cluster Module Variant Coding Screen
  Courtesy of KIA MOTORS AMERICA, INC.

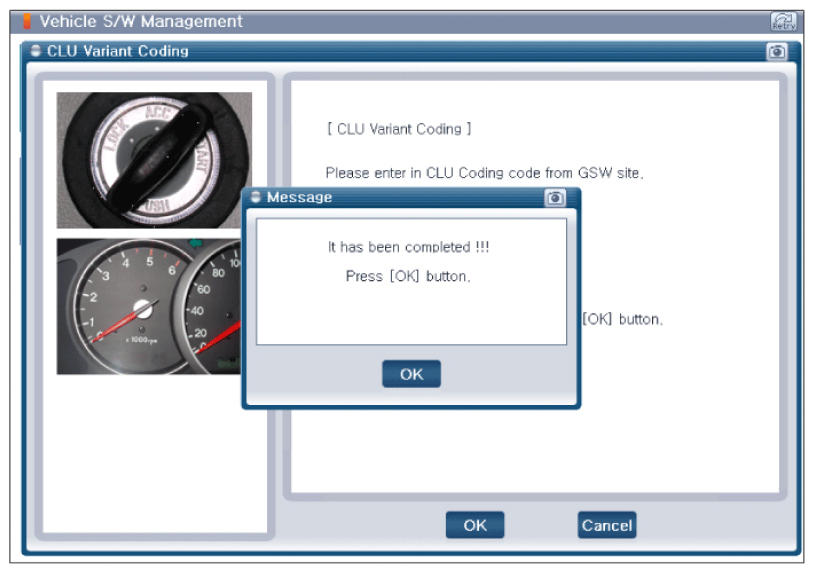

  Fig 3: Display - Cluster Module Variant Coding Screen
  Courtesy of KIA MOTORS AMERICA, INC.

  YES
  - Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management " with GDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to "WIRING INSPECTION " procedure.
