System Inspection

Evap. Leakage Test
1. Connect GDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF"
3. Select the "Vehicle S/W Management" about related DTC with GDS.

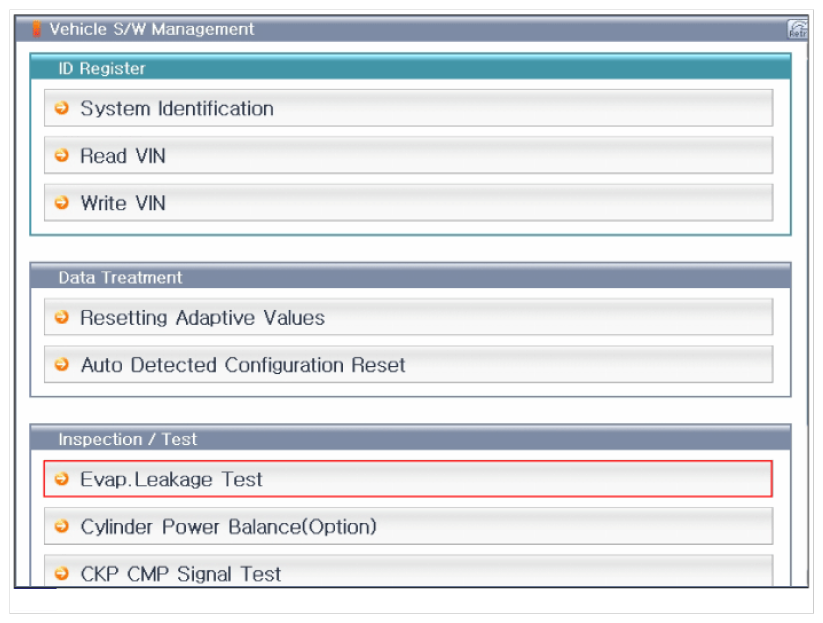

  Fig 1: Select Evap Leakage Test Screen
  Courtesy of KIA MOTORS AMERICA, INC.

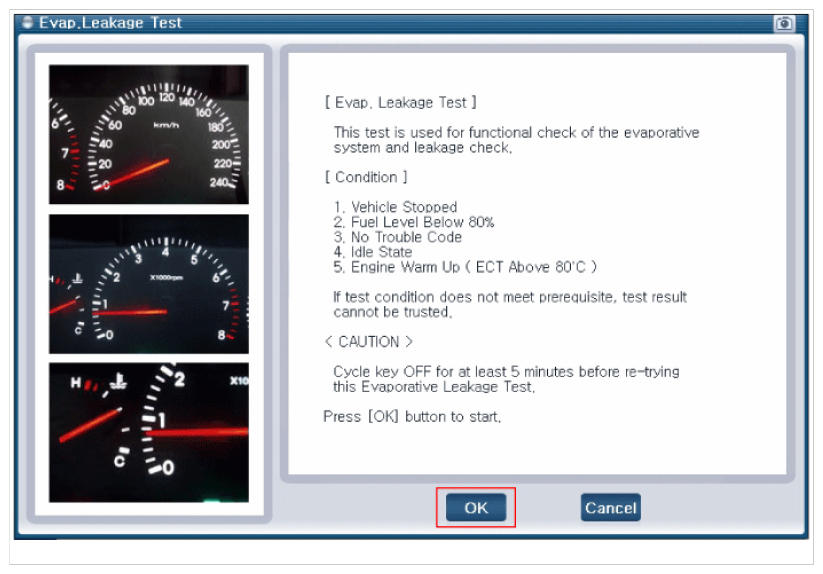

  Fig 2: Press OK Button Screen
  Courtesy of KIA MOTORS AMERICA, INC.

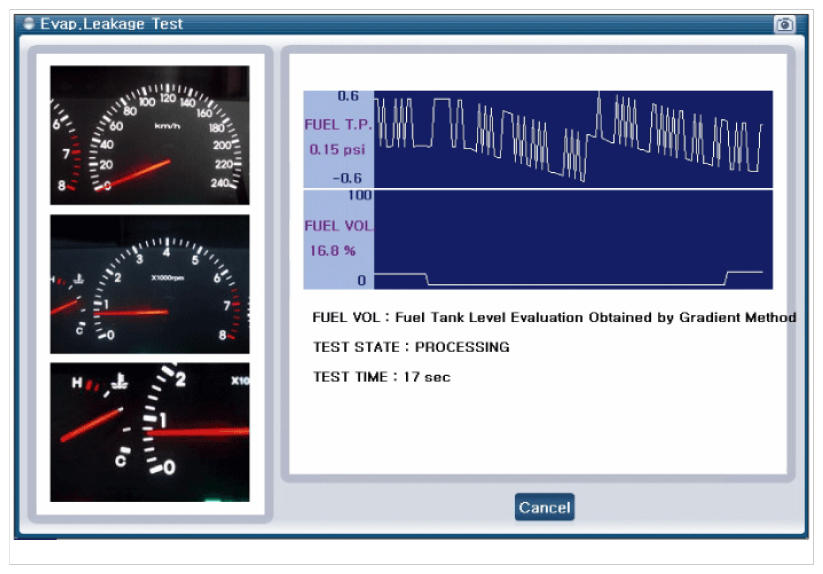

  Fig 3: Wait For 30 Seconds Screen
  Courtesy of KIA MOTORS AMERICA, INC.

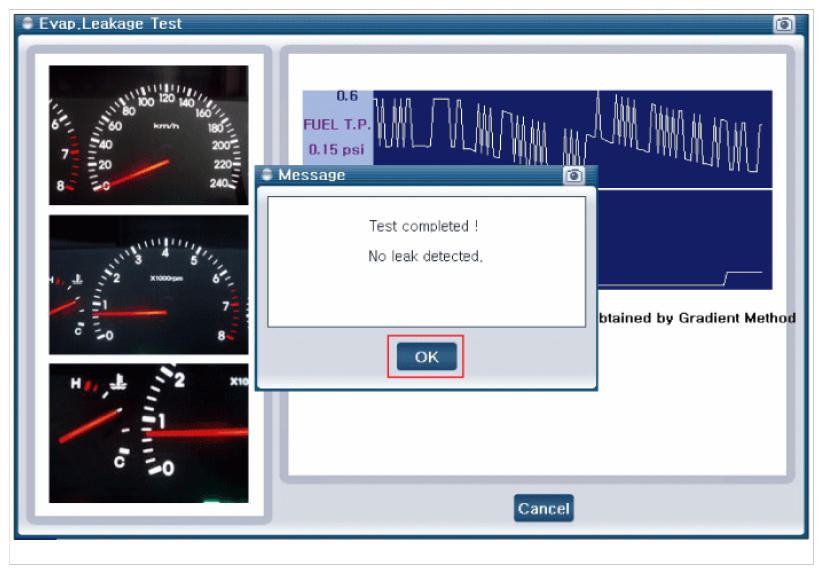

  Fig 4: Test Completed - No Leak Detected Screen
  Courtesy of KIA MOTORS AMERICA, INC.

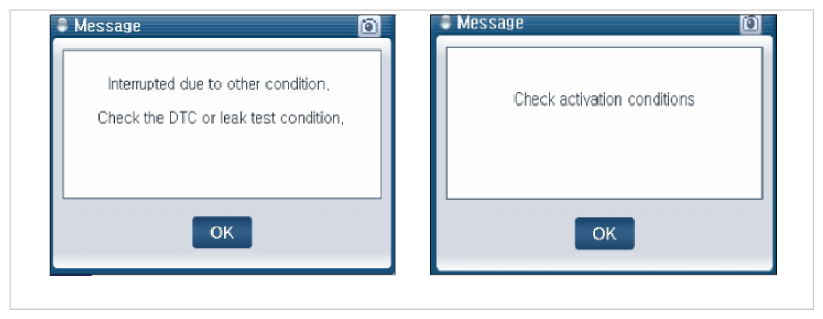

  Fig 5: Message When In Incorrect Condition Screen
  Courtesy of KIA MOTORS AMERICA, INC.

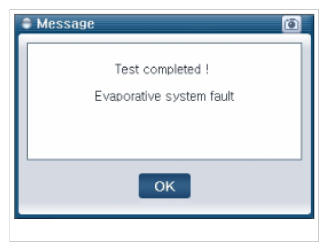

  Fig 6: Test Completed - Evaporative System Fault Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
