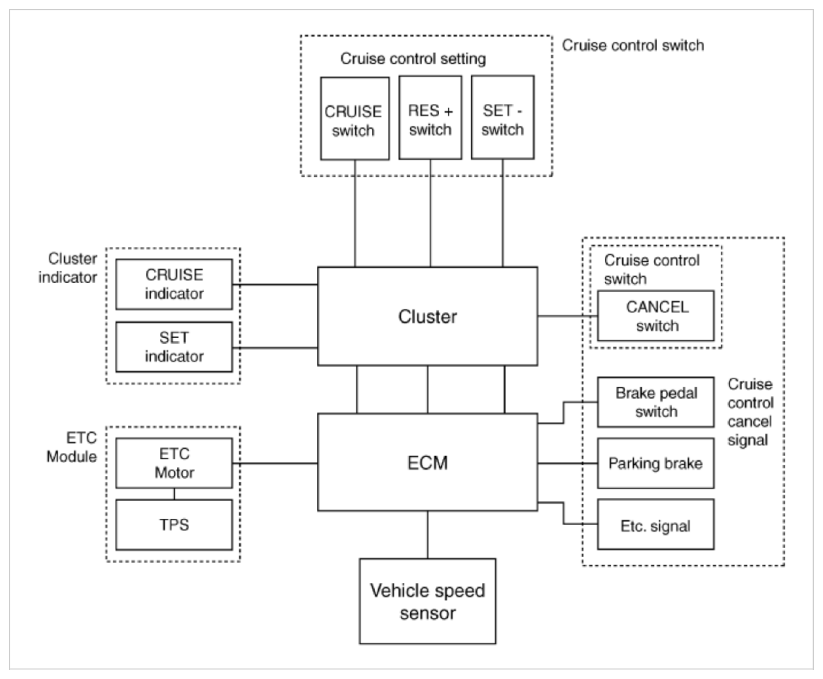

System Block Diagram
WARNING: This page is about a different variant/trim than selected.
Component Parts And Function Outline
| Component part | Function |
|---|---|
| Vehicle-speed sensor | Converts vehicle speed to pulse. |
| ECM | Receives signals from sensor and control switches. |
| Cruise control indicator | Illuminate when CRUISE main switch is ON (Built into cluster) |
| Cruise Control switches | ON/OFF switch |
| Cancel switches | |
| ETC motor | Switch for automatic speed control power supply. |
| RES+switch | Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch) |
| Cancel switch | |
| SET-switch | Sends cancel signals to ECM. |
| Regulates the throttle valve to the set opening by ECM. | |
| Brake-pedal switch | Transaxle range switch (A/T) |
* ETC: Electronic Throttle Control System
