Engine Mounting Bracket

Remove the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Install the jack under the edge of lower oil pan to support the engine.
NOTE: Put the rubber block between the jack and oil pan to avoid damaging the oil pan.
Remove the engine mounting support bracket (A).
Tightening torque

Nut (B):

78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.3 lb-ft)

Bolt (C), Nuts (D):

58.8 ~ 73.5 N.m (6.0 ~ 7.5 kgf.m, 43.4 ~ 54.2 lb-ft)

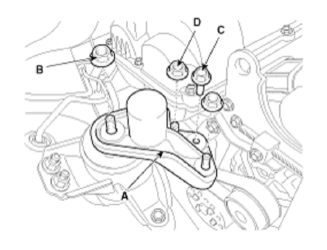

Fig 1: Removing Engine Mounting Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine mounting bracket (A).
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

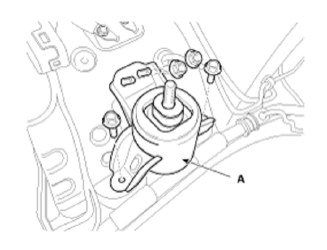

Fig 2: Removing Engine Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
