Roll Rod Bracket

Tightening torque

Bolt (B):

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Bolts (C):

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

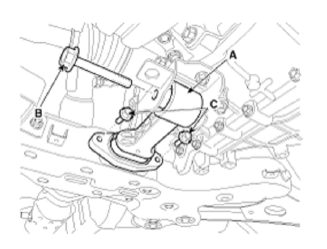

Fig 1: Removing Roll Rod Bracket

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque:

49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)

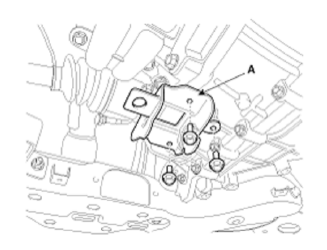

Fig 2: Removing Roll Rod Mounting Support Bracket

Courtesy of KIA MOTORS AMERICA, INC.
