Soul Base, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Restraints
>>
Air Bag, SRS
>>
Supplemental Restraint System Control Module (SRSCM), Occupant Detection System & Sensors
>>
Occupant Detection System (ODS)
>>
Schematic Diagrams
>>
Circuit Diagram (1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram (1)

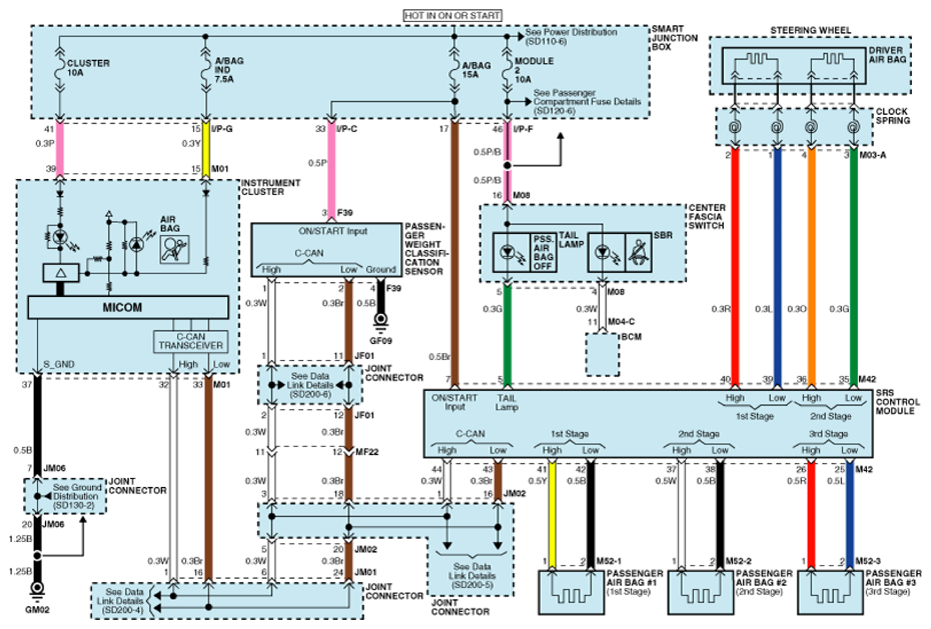

Fig 1: SRS Control Module Circuit Diagram (1)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
