Component Inspection

Inspect CKPS
1. IG KEY "OFF".
2. Disconnect CKPS connector.
3. Measure resistance between Pin No. 1 (Signal A) terminal and Pin No. 2 (Signal B) terminal of the CKPS. (Component Side)
  Specification: Approx. 950Ω [20°C (68°F)]

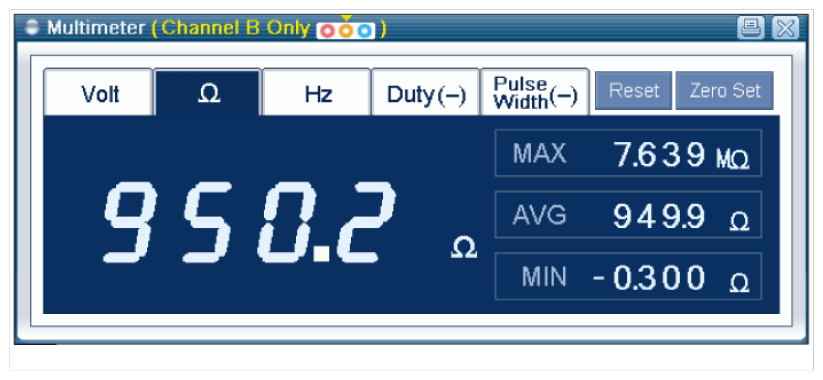

  Fig 1: Resistance Of CKPS
  Courtesy of KIA MOTORS AMERICA, INC.
Confirm Part Inspection
1. Does the CKPS operate properly? (Check variation)
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Carefully re-do this troubleshooting guide steps.
  - If problem still occurs, replace CKPS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
