Components And Components Location: Components

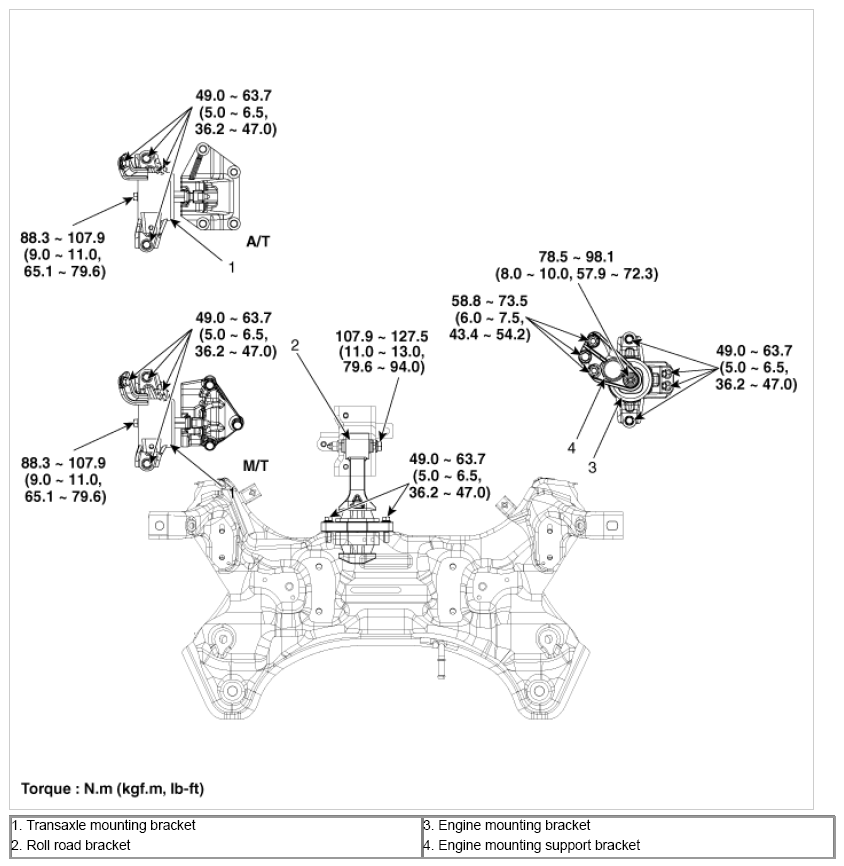

Fig 1: Engine Mounting Components With Torque Specifications
G09772770Courtesy of KIA MOTORS AMERICA, INC.
