Repair Procedures: Removal

[CVVT Oil Control Valve (Intake)]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the intake manifold.

   (Refer to "INTAKE MANIFOLD ")

3. Disconnect the CVVT oil control valve connector (A).
4. Remove the installation bolt (B), and then remove the valve from the engine.

   [Bank 1]

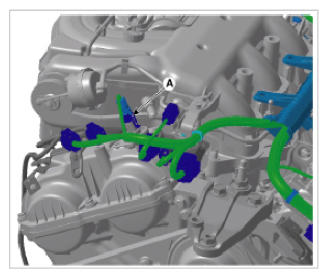

   Fig 1: Identifying CVVT Oil Control Valve Connector And Installation Bolt (Intake Bank 1)

   Courtesy of KIA MOTORS AMERICA, INC.

   [Bank 2]

   Fig 2: Identifying CVVT Oil Control Valve Connector And Installation Bolt (Intake Bank 2)

   Courtesy of KIA MOTORS AMERICA, INC.

[CVVT Oil Control Valve (Bank1/Exhaust)]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the CVVT oil control valve connector (A).
   Fig 3: Identifying CVVT Oil Control Valve Connector (Bank1/Exhaust)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the surge tank.

   (Refer to "SURGE TANK ")

4. Remove the cylinder head cover.

   (Refer to "CYLINDER HEAD COVER ")

5. Remove the installation bolt (A), and then remove the valve from the engine.
   Fig 4: Identifying CVVT Oil Control Valve And Bolt (Bank1/Exhaust)

   Courtesy of KIA MOTORS AMERICA, INC.

[CVVT Oil Control Valve (Bank2/Exhaust)]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the CVVT oil control valve connector (A).
   Fig 5: Identifying CVVT Oil Control Valve Connector (Bank2/Exhaust)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the cylinder head cover.

   (Refer to "CYLINDER HEAD COVER ")

4. Remove the installation bolt (A), and then remove the valve from the engine.
   Fig 6: Identifying CVVT Oil Control Valve And Bolt (Bank2/Exhaust)

   Courtesy of KIA MOTORS AMERICA, INC.
