Components and Components Location

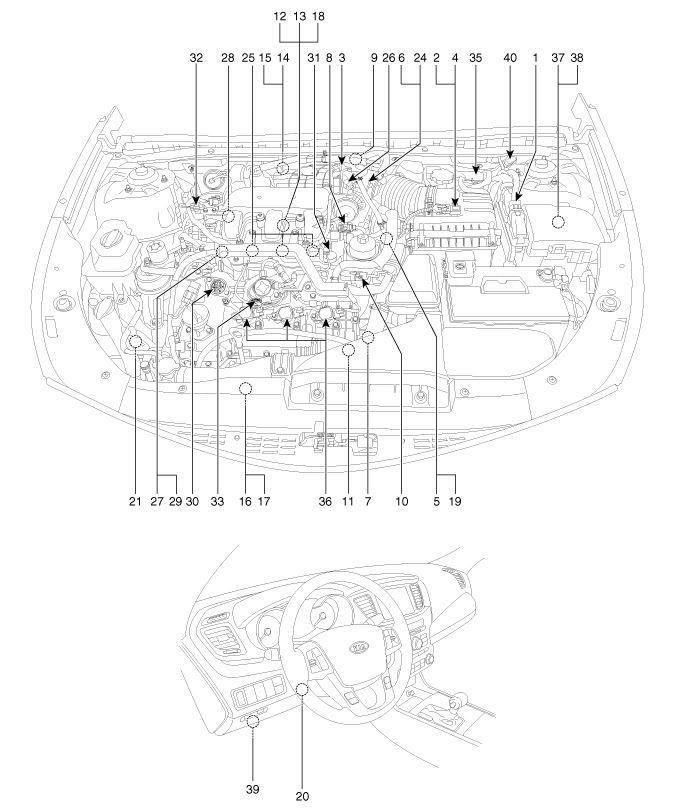

Fig 1: ECM Components Location (1 Of 7)

G09751228

Courtesy of KIA MOTORS AMERICA, INC.

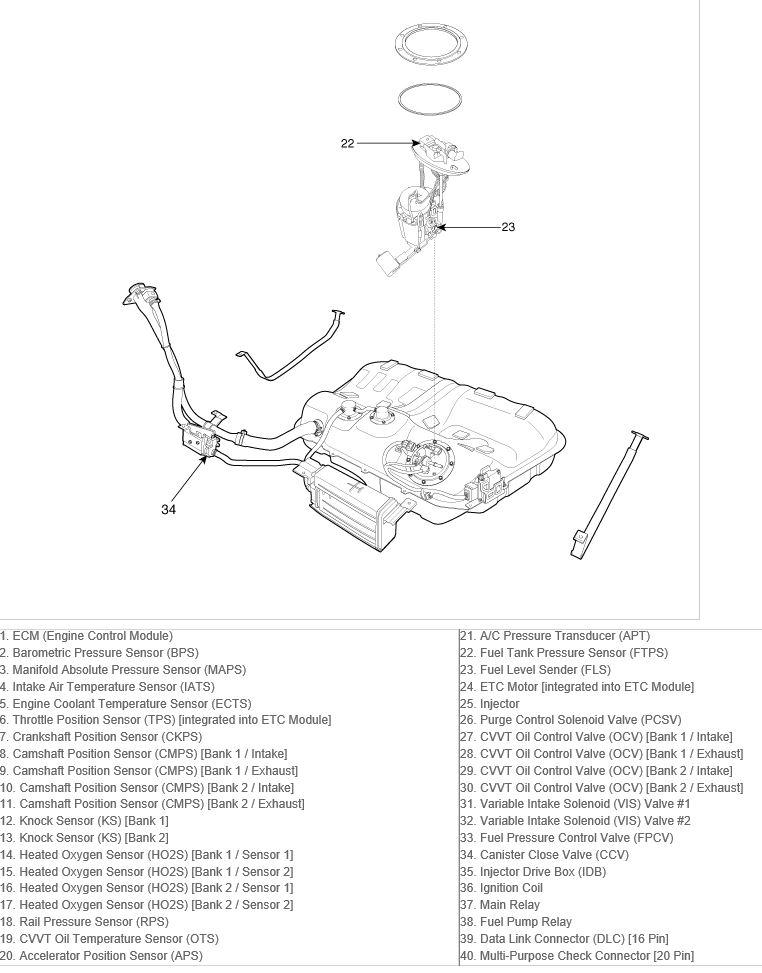

Fig 2: ECM Components Location (2 Of 7)

G09751229

Courtesy of KIA MOTORS AMERICA, INC.

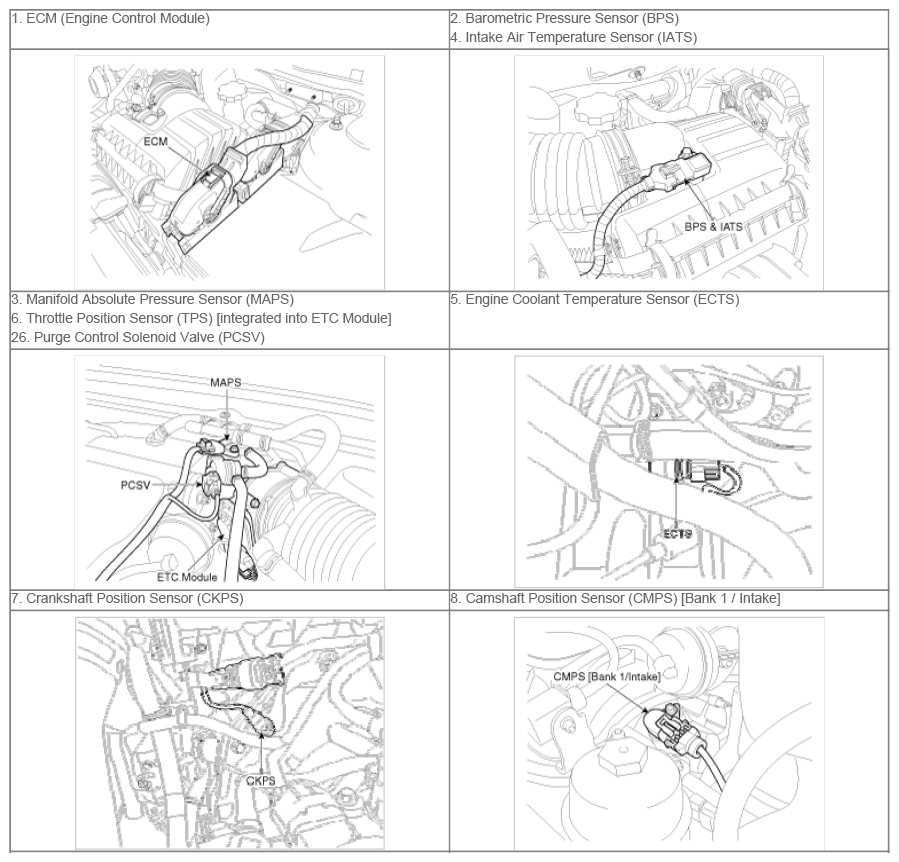

Fig 3: ECM Components Location (3 Of 7)

G09751230

Courtesy of KIA MOTORS AMERICA, INC.

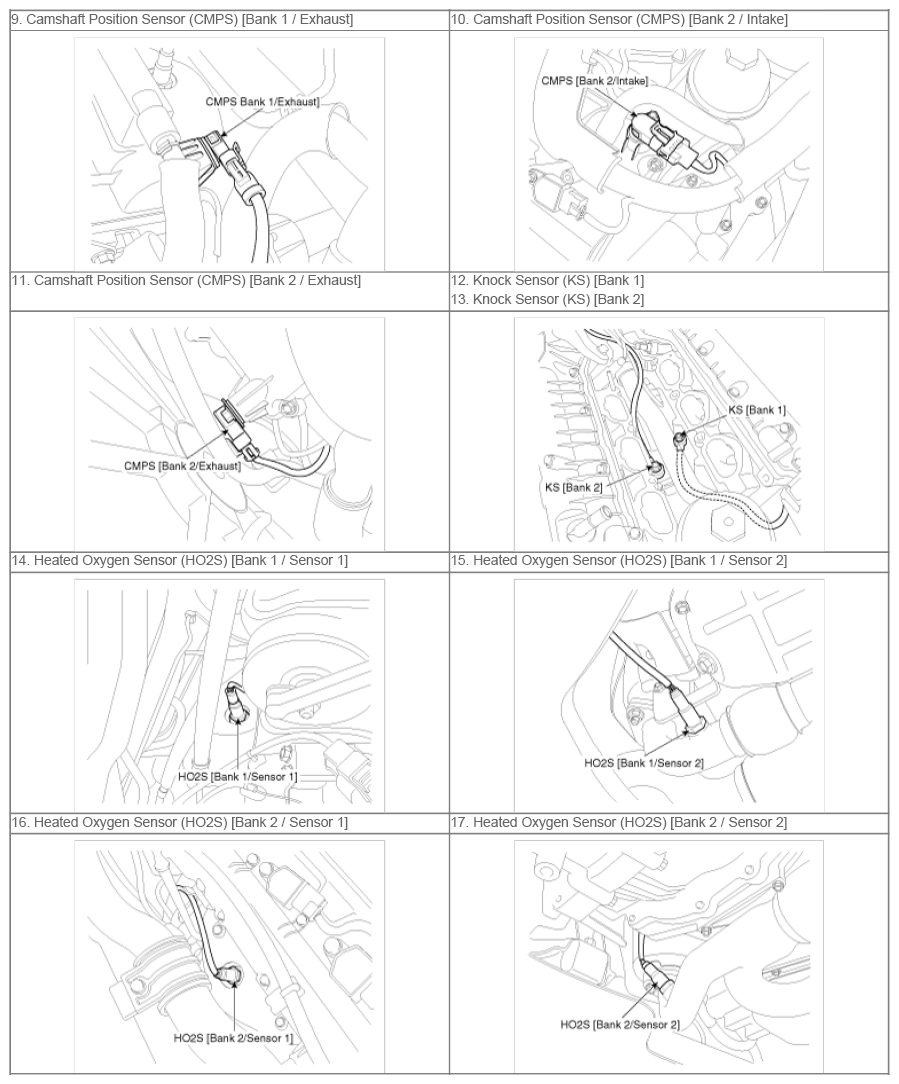

Fig 4: ECM Components Location (4 Of 7)

G09751231

Courtesy of KIA MOTORS AMERICA, INC.

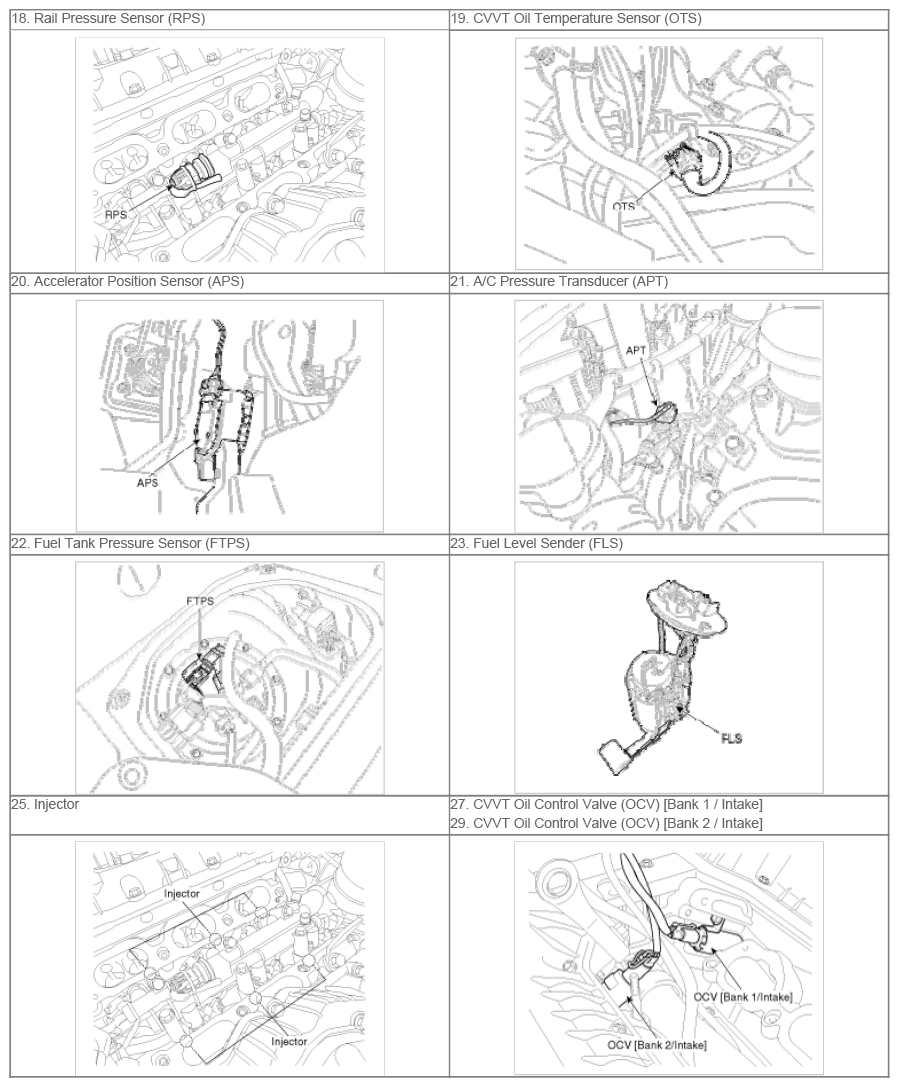

Fig 5: ECM Components Location (5 Of 7)

G09751232

Courtesy of KIA MOTORS AMERICA, INC.

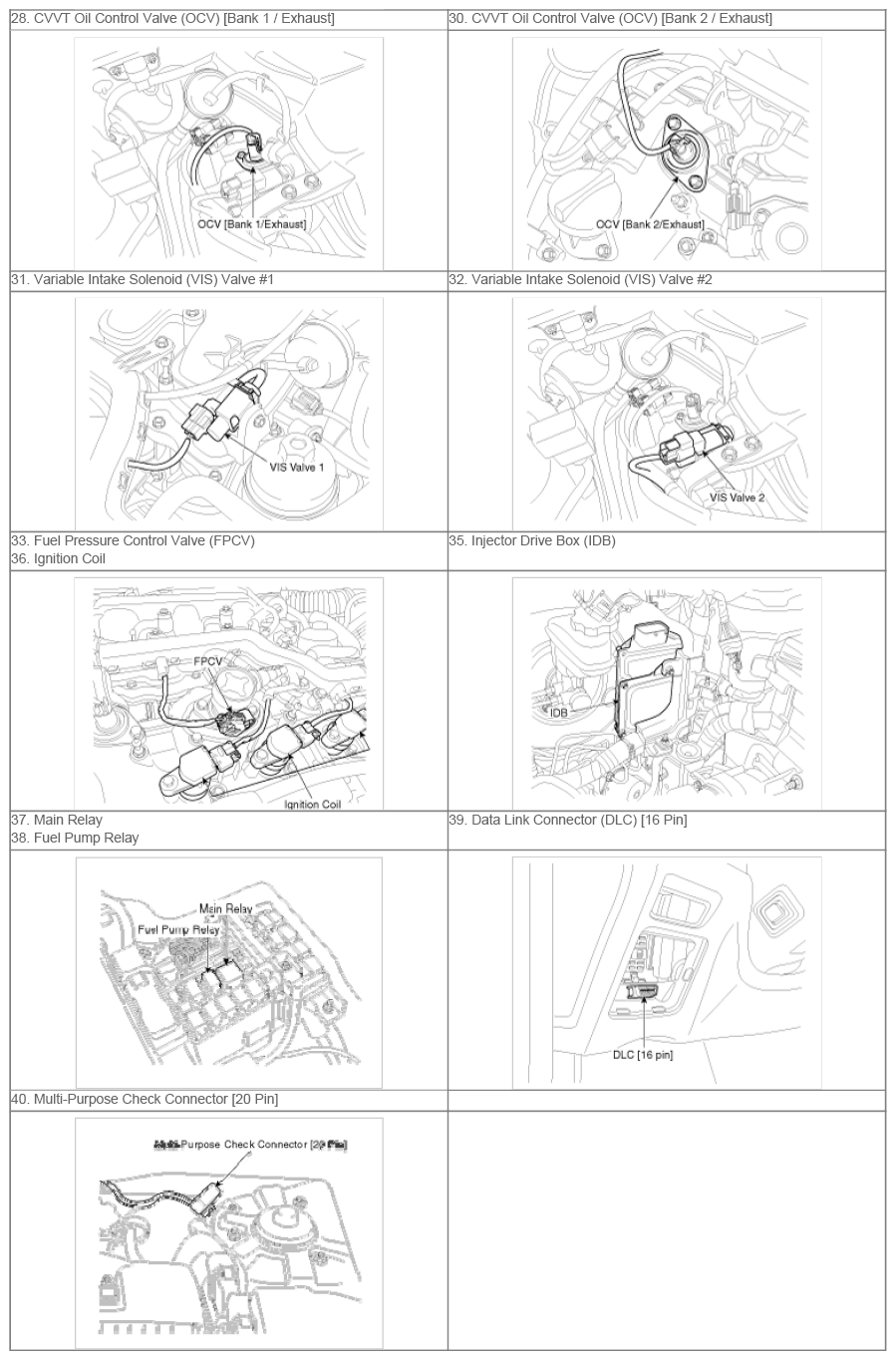

Fig 6: ECM Components Location (6 Of 7)

G09751233

Courtesy of KIA MOTORS AMERICA, INC.
