Wave Form

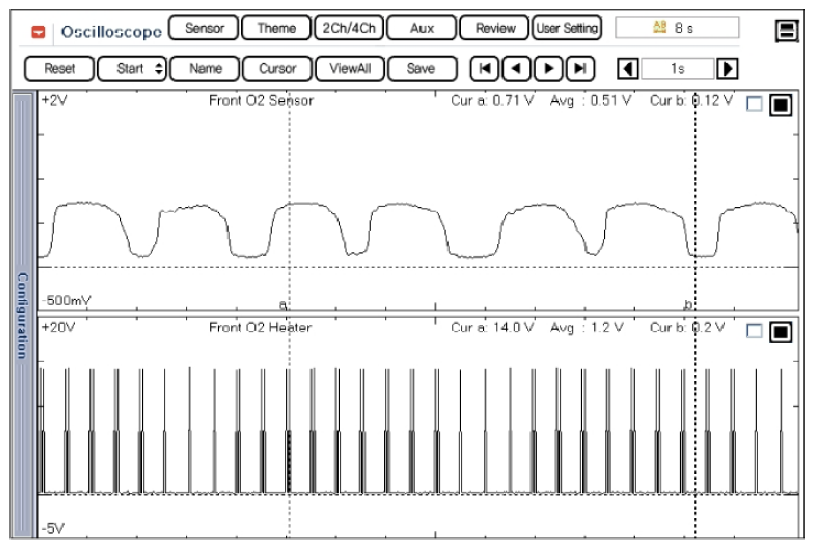

Fig 1: Display - Front O2 Sensor And Heating Troubleshooting Waveform
G09751293Courtesy of KIA MOTORS AMERICA, INC.

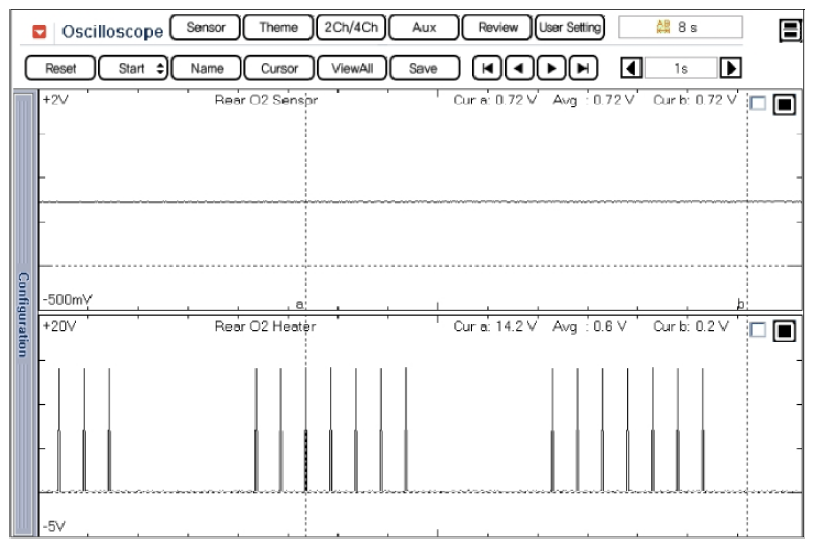

Fig 2: Display - Rear O2 Sensor And Heating Troubleshooting Waveform
G09751294Courtesy of KIA MOTORS AMERICA, INC.
