Special Service Tools

Item Illustration Application
Fuel Pressure Gauge (09353-24100)
G09751202
 Measuring the fuel line pressure
Fuel Pressure Gauge Adapter (09353-02100)
G09751203
 Connection between the high pressure fuel pump and the fuel feed line
Heated Oxygen Sensor Socket Wrench (09392-1Y100)
G09751204
 Removal and installation of the heated oxygen sensor
* SST No. 09392-2H100 model also can be used for removing the Heated Oxygen Sensor.
Torque Wrench Socket (17mm) (09314-3V100)
G09751205
 Removal and installation of the high pressure fuel pipe

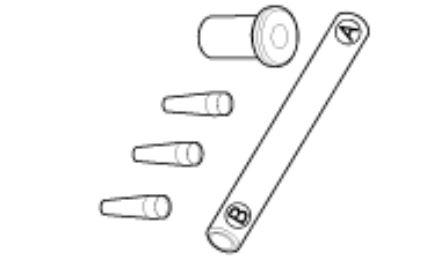

Injector Combustion Seal Guide & Sizing tool (09353-2B000)
G09751206
 Installation of the injector combustion seal
