[Transaxle Components]

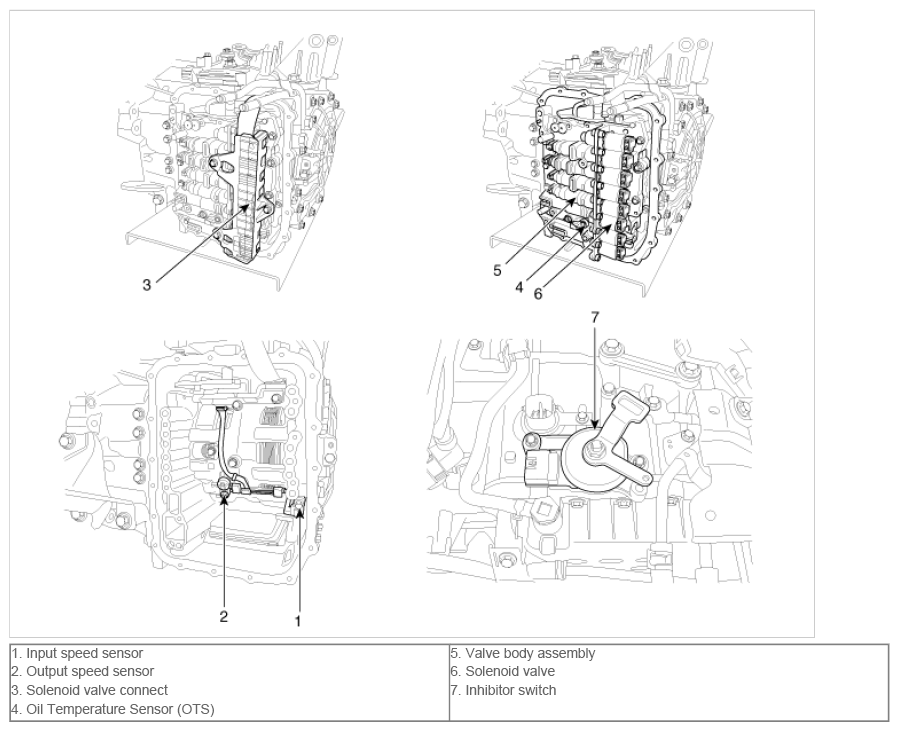

Fig 1: Automatic Transaxle, Transaxle Control Module, Shift Lever And DLC Components Location (Transaxle Components)
G09751510Courtesy of KIA MOTORS AMERICA, INC.
