Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

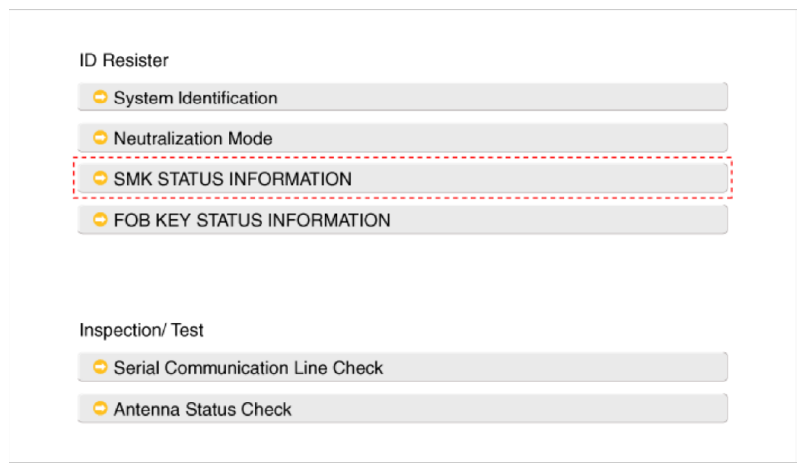

    Fig 1: Display - SMK Status Information Selection Screen
    G09744854Courtesy of KIA MOTORS AMERICA, INC.

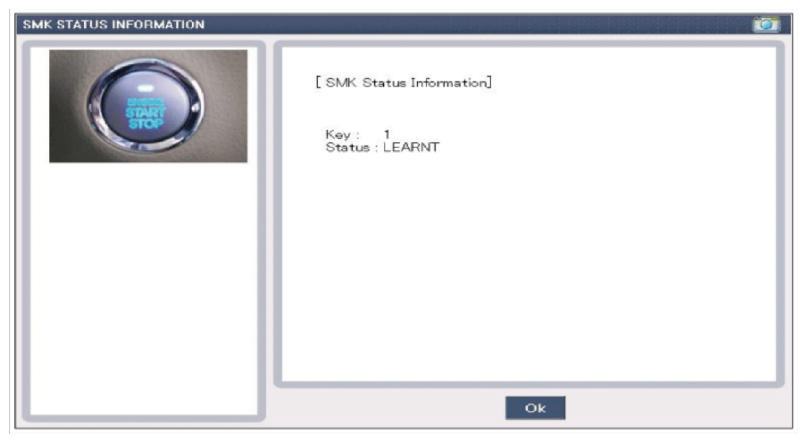

    Fig 2: Display - SMK Status Information Screen
    G09744855Courtesy of KIA MOTORS AMERICA, INC.
