Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guard.
  3. Remove the buzzer (B) after disconnecting the connector (A).

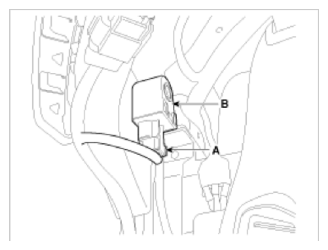

    Fig 1: Buzzer And Connector
    G09744832Courtesy of KIA MOTORS AMERICA, INC.
