Electronic Stability Control (ESC) System
>>
ESC (Electronic Stability Control) System
>>
Description And Operation
>>
Input and Output Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Input and Output Diagram

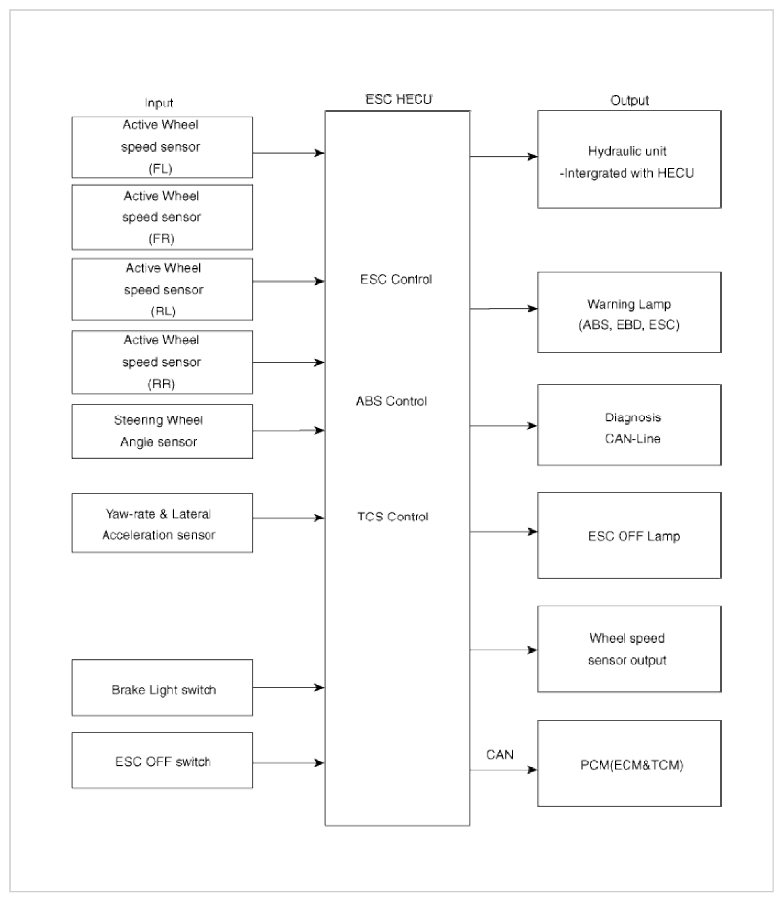

Fig 1: Input And Output Components System Diagram
Courtesy of KIA MOTORS AMERICA, INC.
