Repair Procedures: Removal

  1. Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).

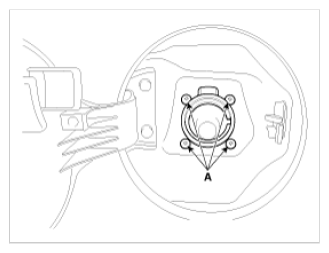

    Fig 1: Filler-Neck Assembly Mounting Screw
    G09743115Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the rear-LH wheel, tire, and the inner wheel house.
  3. Disconnect the fuel filter hose (A) and the ventilation hose (B).
  4. Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolts (C).

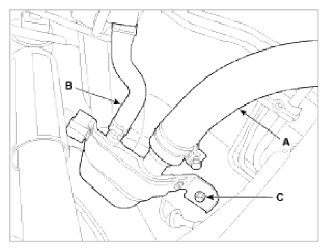

    Fig 2: Fuel Filter, Ventilation Hose And Bracket Mounting Bolts
    G09743116Courtesy of KIA MOTORS AMERICA, INC.
