Repair Procedures: Removal

Turn the ignition switch OFF, and then remove battery (-) cable.
Release the residual pressure in fuel line.
(Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

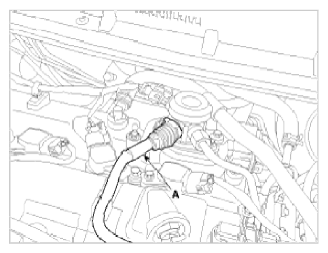

Disconnect the low pressure fuel quick-connector (A).

Fig 1: Low Pressure Fuel Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.

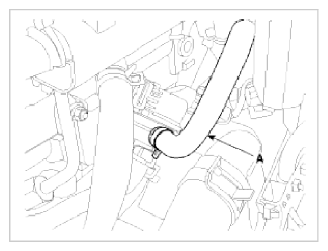

Disconnect the vapor hose (A) which is connected from the PCSV.

Fig 2: Vapor Hose
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the fuel tank.
(Refer to "FUEL TANK ")

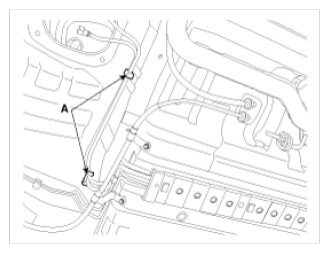

Remove the vapor tube and low fuel line fixing clip (A) by using a common driver.

Fig 3: Low Fuel Line Fixing Clip
Courtesy of KIA MOTORS AMERICA, INC.

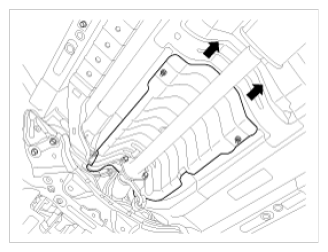

Remove the installation nuts, and then push the heat protector in the direction of an arrow.

Fig 4: Pushing Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.

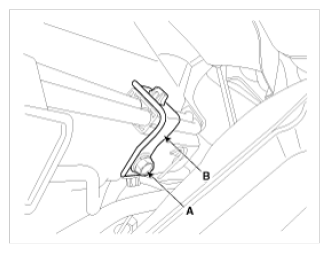

Remove the installation bolts (A), and then remove the fuel line fixing clip (B).

Fig 5: Fuel Line Fixing Clip And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

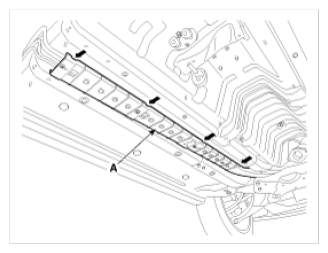

Release the fuel & brake line protector (A) by disconnecting the fixing clip.

Fig 6: Fuel And Brake Line Protector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel line.

Fig 7: Fuel Line
Courtesy of KIA MOTORS AMERICA, INC.
