Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Remove the engine cover.
Drain the engine coolant.
(Refer to "COOLANT ")
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Disconnect the radiator upper hose.
(Refer to "RADIATOR ")
Disconnect the heater hose.
(Refer to "ENGINE & TRANSAXLE ASSEMBLY - 1.8L ")
Disconnect the bypass hose (A) and the throttle body coolant hose (B) (if equipped).

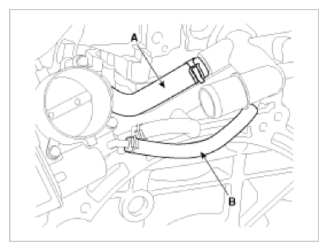

Fig 1: Bypass Hose & Throttle Body Coolant Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the water temperature control assembly (A) with the O-ring (B).
Tightening Torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

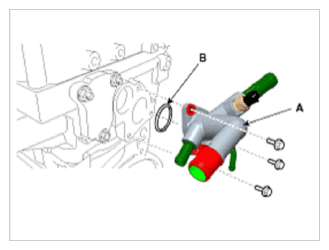

Fig 2: Water Temperature Control Assembly With O-Ring
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Install a new O-ring.
- Clean surface on the O-ring and install the O-ring after wetting with water.
Install in the reverse order of removal.
Fill the engine coolant.
(Refer to "COOLANT ")
Start engine and check for leaks.
