Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Engine cover.

    (Refer to "ENGINE COVER ")

  2. Air cleaner assembly and air duct.

    (Refer to "AIR CLEANER ")

  3. Battery and battery tray.

    (Refer to "BATTERY ")

  4. Remove the ECM (Engine Control Module).

    (Refer to "ENGINE CONTROL MODULE (ECM) ")

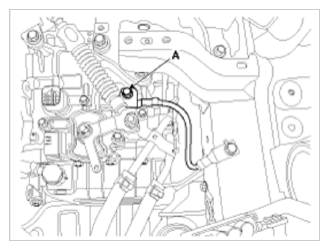

  5. Remove the ground line after removing the bolt (A).
    Fig 1: Ground Line Bolt
    G09748818Courtesy of KIA MOTORS AMERICA, INC.

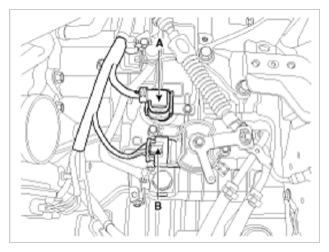

  6. Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).
    Fig 2: Solenoid Valve Connector And Inhibitor Switch Connector
    G09748819Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the control cable (C) after removing the nut (A) and the bolt (B).

    Tightening torque:

    1. 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
    2. 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

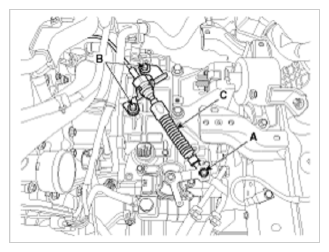

      Fig 3: Control Cable, Nut And Bolt
      G09748820Courtesy of KIA MOTORS AMERICA, INC.

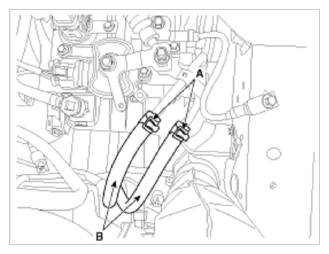

  8. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
    Fig 4: Automatic Transaxle Fluid Cooler Hose & Clamp
    G09748821Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the wiring mounting bolt (A).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

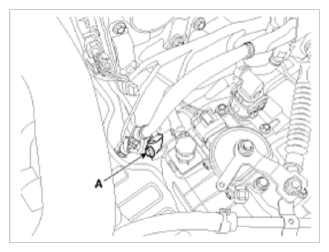

    Fig 5: Wiring Mounting Bolt
    G09748822Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the solenoid valve connector and inhibitor switch connector wiring mounting bracket (A) and (B).

    Tightening torque:

    Bolt (A):

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    Bolt (B):

    14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

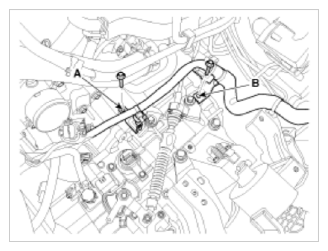

    Fig 6: Solenoid Valve Connector And Inhibitor Switch Connector Wiring Mounting Bracket
    G09748823Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the cowl top cover. (Refer to "COWL TOP COVER ")
  12. Assemble the engine support fixture. (Refer to "SPECIAL SERVICE TOOLS ")
  13. Using the engine support fixture (beam No.: 09200-38001 or 09200-3N000, supporter No.: 09200-2S000, adapter No.: 09200-4X000), hold the engine and transaxle assembly safely.

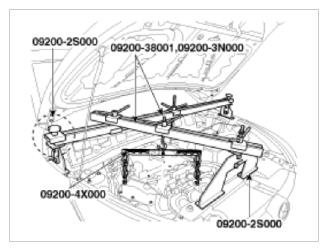

    Fig 7: Holding Engine And Transaxle Assembly Using Tool
    G09748824Courtesy of KIA MOTORS AMERICA, INC.

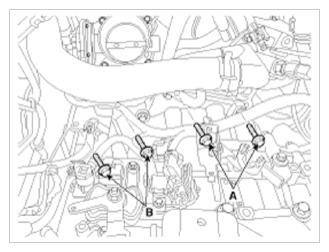

  14. Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter motor mounting bolt (B-2ea).

    Tightening torque:

    (A, B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

    Fig 8: Automatic Transaxle Upper Mounting Bolts
    G09748825Courtesy of KIA MOTORS AMERICA, INC.

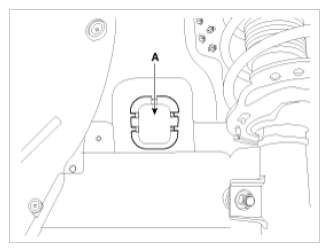

  15. Remove the automatic transaxle mounting bracket cover (A).
    Fig 9: Automatic Transaxle Mounting Bracket Cover
    G09748826Courtesy of KIA MOTORS AMERICA, INC.
  16. Remove the automatic transaxle mounting bracket bolts (A).

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

    Fig 10: Automatic Transaxle Mounting Bracket Bolts
    G09748827Courtesy of KIA MOTORS AMERICA, INC.

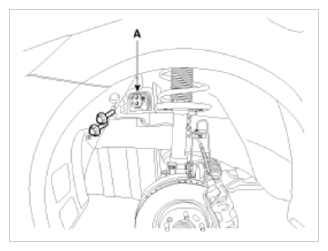

  17. Remove the automatic transaxle mounting support bracket (A).

    Tightening torque:

    58.8 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

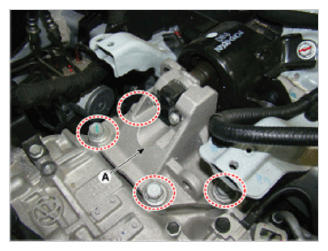

    Fig 11: Automatic Transaxle Mounting Support Bracket And Bolts
    G09748828Courtesy of KIA MOTORS AMERICA, INC.
  18. Lift the vehicle with a jack.
  19. Remove the under cover (A).

    Tightening torque:

    6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

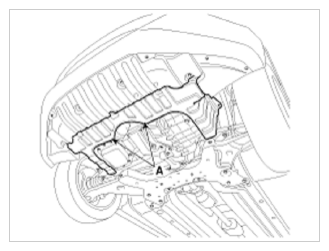

    Fig 12: Under Cover
    G09748829Courtesy of KIA MOTORS AMERICA, INC.
  20. Remove the roll stopper (A).

    Tightening torque

    Nut (B):

    107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

    Bolt (C):

    49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

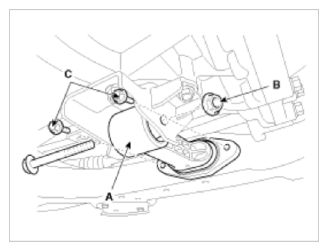

    Fig 13: Roll Stopper And Bolts
    G09748830Courtesy of KIA MOTORS AMERICA, INC.
  21. Remove the drive shaft assembly.

    (Refer to "FRONT DRIVESHAFT ")

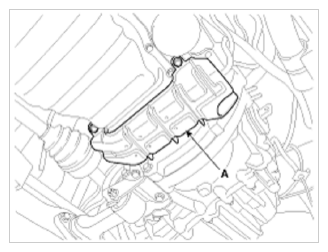

  22. Remove the air guide bracket (A).

    Tightening torque:

    8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

    Fig 14: Air Guide Bracket
    G09748831Courtesy of KIA MOTORS AMERICA, INC.
  23. Remove the dust cover (A).

    Tightening torque:

    42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

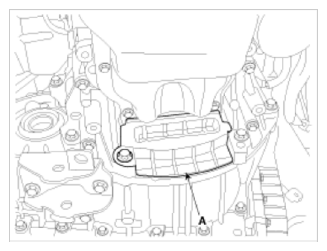

    Fig 15: Dust Cover
    G09748832Courtesy of KIA MOTORS AMERICA, INC.

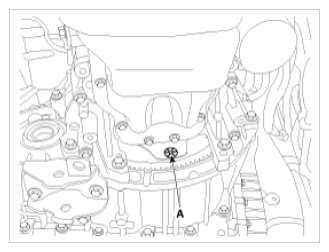

  24. Remove the torque converter mounting bolts (A) with rotating the crankshaft.

    Tightening torque:

    45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

    Fig 16: Torque Converter Mounting Bolt
    G09748833Courtesy of KIA MOTORS AMERICA, INC.

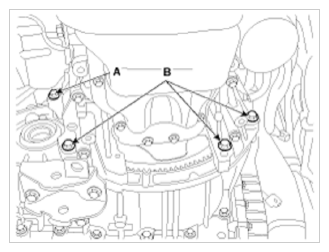

  25. Remove the automatic transaxle with a jack after removing the mounting bolt (A-1ea, B-3ea).

    Tightening torque:

    1. 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
    2. 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)
      Fig 17: Automatic Transaxle Mounting Bolts
      G09748834Courtesy of KIA MOTORS AMERICA, INC.
