Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening the screw.

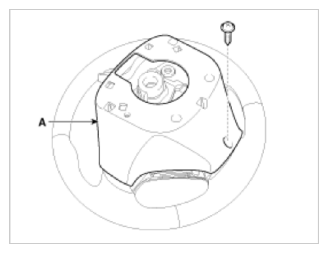

Fig 1: Steering Wheel Cover & Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the steering heater connectors (A).

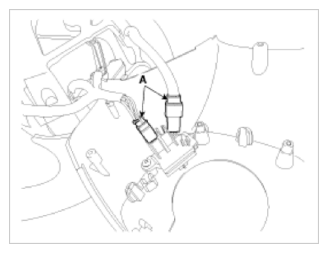

Fig 2: Steering Heater Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering remote control switch assembly after loosening the mounting screws (4EA).

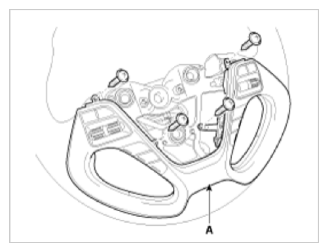

Fig 3: Steering Remote Control Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the switch connectors (A).

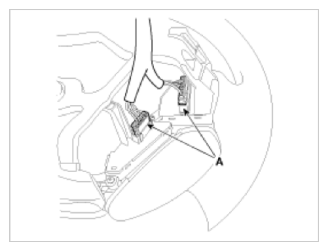

Fig 4: Switch Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cruise control switch (A) after loosening the mounting screws.

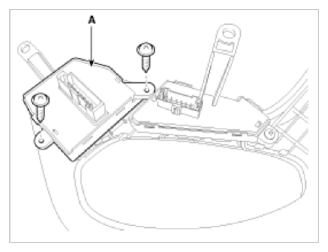

Fig 5: Cruise Control Switch
Courtesy of KIA MOTORS AMERICA, INC.
