Repair Procedures: Installation

NOTE:

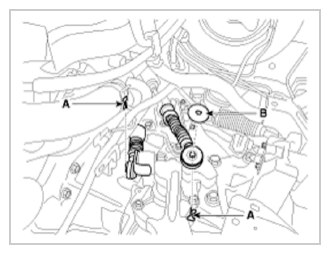

Install the control cable (B) and clip (A) on the bracket.

Fig 1: Control Cable And Clip
Courtesy of KIA MOTORS AMERICA, INC.

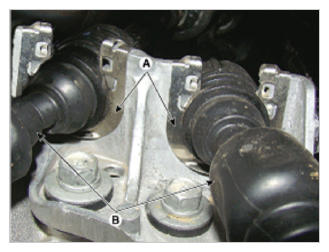

Install the washer (B) and pin (A).

Fig 2: Locating Washer And Pin
Courtesy of KIA MOTORS AMERICA, INC.

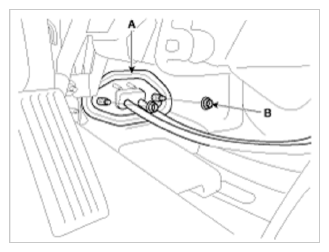

Tighten the nut (B) after install the retainer (A).
Tightening Torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 3: Nut And Retainer
Courtesy of KIA MOTORS AMERICA, INC.

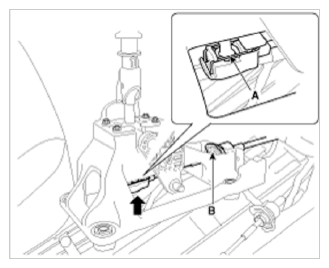

Install the cable socket (A) on the shift lever assembly.

Fig 4: Cable Socket On Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.

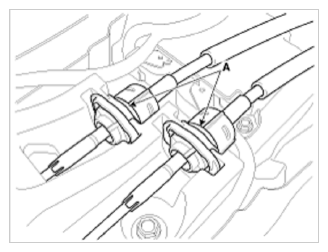

Install the shift cable (B) and clip (A).

Fig 5: Shift Cable And Clip
Courtesy of KIA MOTORS AMERICA, INC.
Shift lever to "3rd".

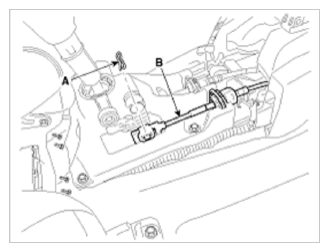

Install the snap pin (A) after install the select cable (B).
CAUTION:
- Install the snap pin (A) after adjust the select cable (B).
  (Refer to "ADJUSTMENT ")
Fig 6: Snap Pin & Select Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to "FLOOR CONSOLE ")
Install the battery and battery tray.
(Refer to "BATTERY ")
Install the air cleaner assembly.
(Refer to "AIR CLEANER ")
