Engine Control System - 1.8L
>>
Camshaft Position Sensor (CMPS)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(M/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: (M/T)

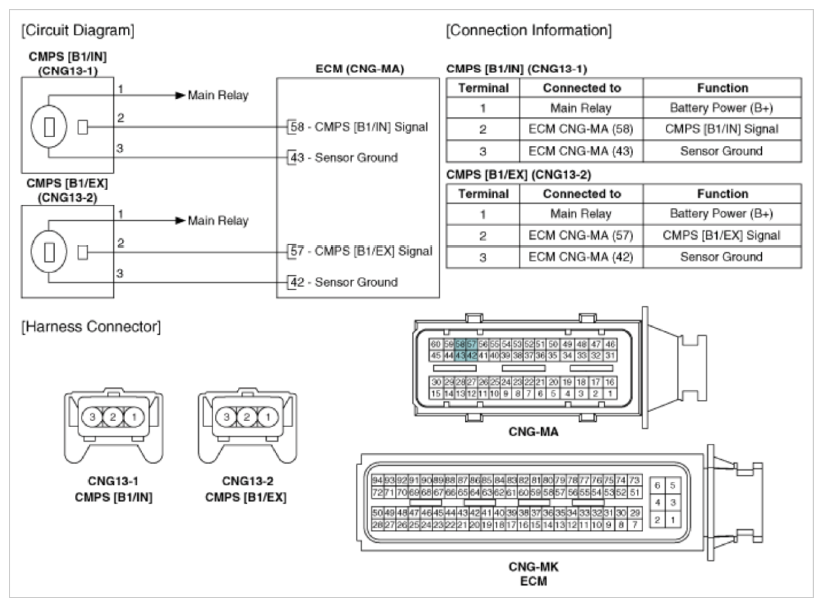

Fig 1: Camshaft Position Sensor (CMPS) - Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
