Circuit Diagram: (A/T)

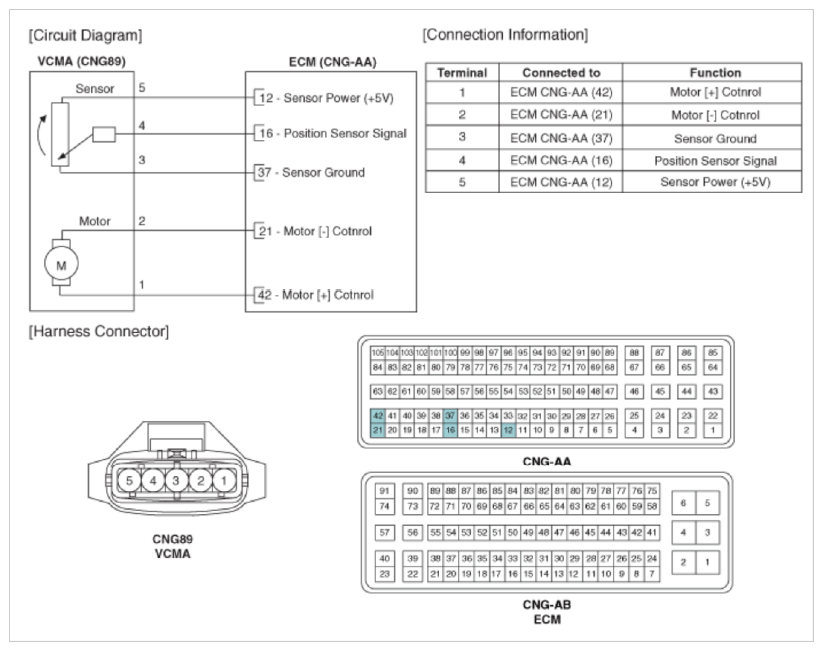

Fig 1: Variable Charge Motion Actuator (VCMA) - Circuit Diagram (A/T)
G09748814Courtesy of KIA MOTORS AMERICA, INC.
