Component Inspection

Select "Actuation Test" mode and execute 'ETC motor' item.

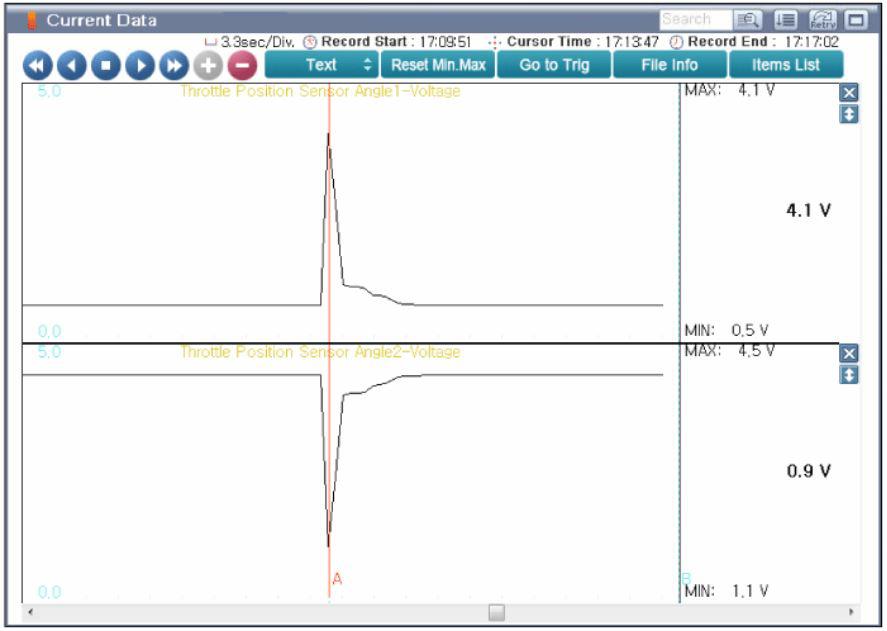

Fig 1: TPS1 & TPS2 Waveforms
Courtesy of KIA MOTORS AMERICA, INC.

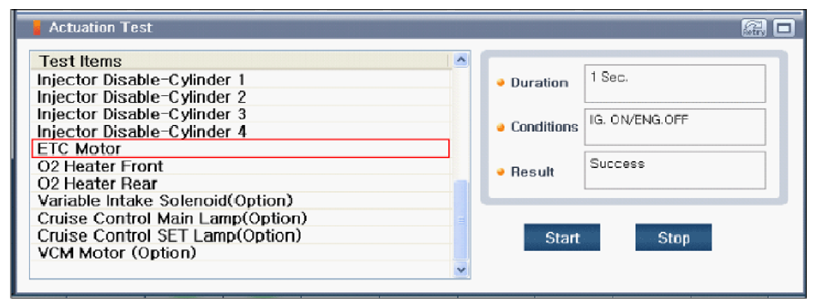

Fig 2: ETC Motor Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
- During 'ETC Motor' test, TPS1 and TPS2 show symmetrical movements.
Is the waveform normal?
YES
- Check for poor connection between PCM/ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check TPS for contamination, deterioration, or damage. Substitute with a known-good TPS and check for proper operation. If the problem is corrected, replace TPS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE:
It is necessary to perform the TPS adaptation procedure after the ETC assembly or PCM/ECM replacing.
- TPS adaptation procedure
Ignition "OFF" and then "ON" without cranking. Wait for 10 seconds under enable conditions.
→ Enable conditions: Battery >10V & Intake Air Temp. >5.3°C (41.5°F) & 5.3°C (41.5°F) < Engine Coolant Temp. <99.8°C (211.6°F)
