Signal Waveform & Data

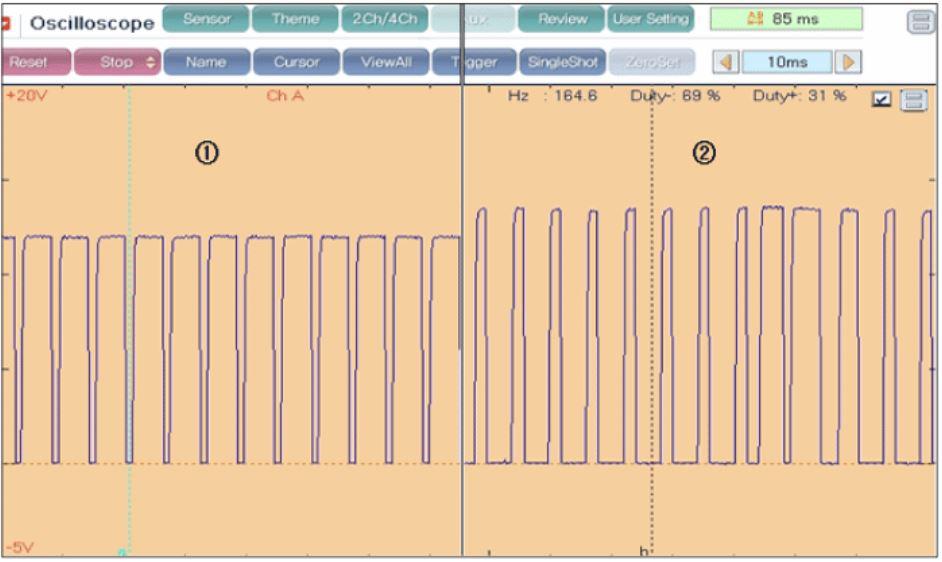

Fig 1: Waveform With IG ON & Idle With No Load
G00570736Courtesy of KIA MOTORS AMERICA, INC.

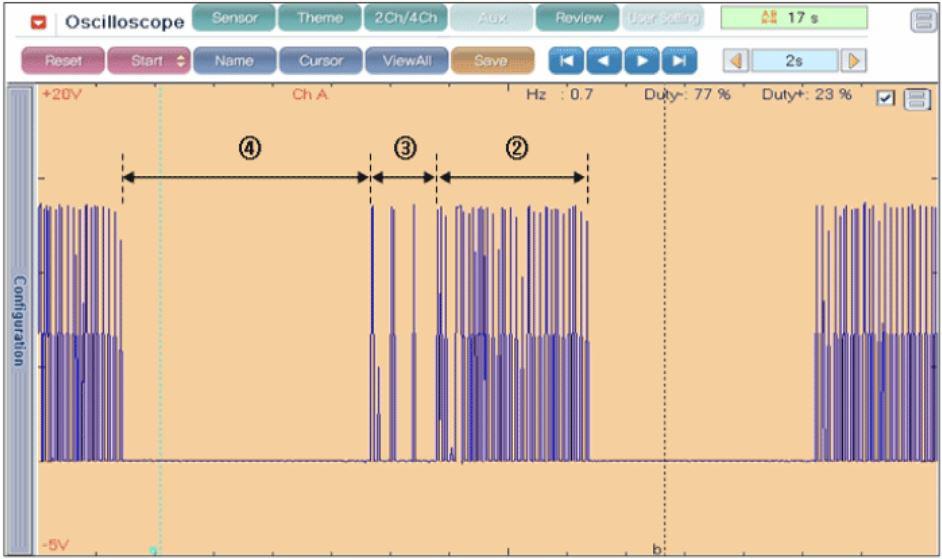

Fig 2: Waveform At Idle With No Load, Part Load And Full Load
G00570737Courtesy of KIA MOTORS AMERICA, INC.
  1. Normal waveform with IG ON
  2. Normal waveform with Idle and no electrical load
  3. Normal waveform with Idle and part electrical load
  4. Normal waveform with Idle and full electrical load (A/C, Defrost, Head Lamp, Repeater, Audio, etc)
