Driver CCS Control Module Connector End View (S06)

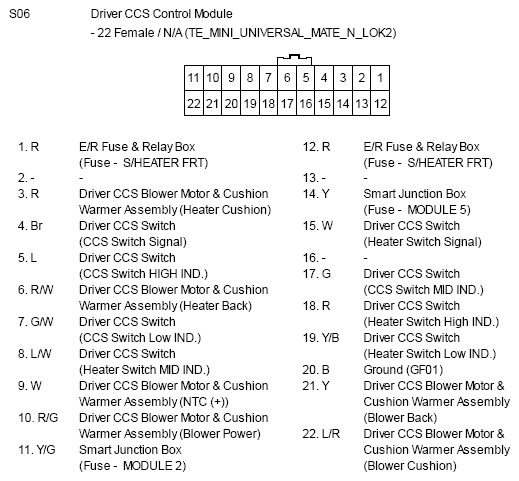

Fig 1: Driver CCS Control Module Connector End View (S06)

G10783456
