Neutralizing Of ECM

The ECM can be set to the "neutral" status by a tester.

A valid ignition key is inserted and after ignition on is recorded, the ECM requests the vehicle specific data from the tester. The communication messages are described at "Neutral Mode" After successfully receiving the data, the ECM is neutralized.

The ECM remains locked. Neither the limp home mode nor the "twice ignition on" function, is accepted by the ECM.

The teaching of keys follows the procedure described for the virgin ECM. The vehicle specific data have to be unchanged due to the unique programming of the transponder. If data should be changed, new keys with a virgin transponder are requested.

This function is for neutralizing the ECM and Key. Ex) when lost key, Neutralize the ECM then teach keys.

(Refer to the Things to do when Key & PIN Code the ECM can be set to the "neutral" status by a scanner. If wrong vehicle specific data have been sent to immobilizer three times continuously or intermittently, the immobilizer will reject the request to enter neutral mode for one hour.

Disconnecting the battery or other manipulation cannot reduce this time. After connecting the battery the timer starts again for one hour.

NOTE:
  • Neutralizing setting condition
    • In case of ECM status "Learnt" regardless of user password "Virgin or Learnt"
    • Input correct PIN code by scanner.
    • Neutralizing meaning.

      : PIN code (6) & user password (4) deletion.

      : Locking of ECM (except key teaching permission)

  • Neutralizing meaning:
    • PIN Code (6) & User P/Word (4) deletion
    • Locking of EMS (except Key Learning permission)
Fig 1: ECM Condition Chart
G09745008Courtesy of KIA MOTORS AMERICA, INC.

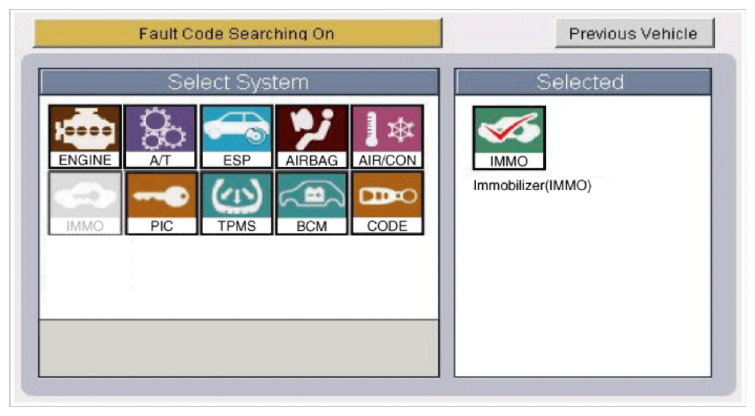

Fig 2: Scan Tool Display - System Select Screen
G09745009Courtesy of KIA MOTORS AMERICA, INC.

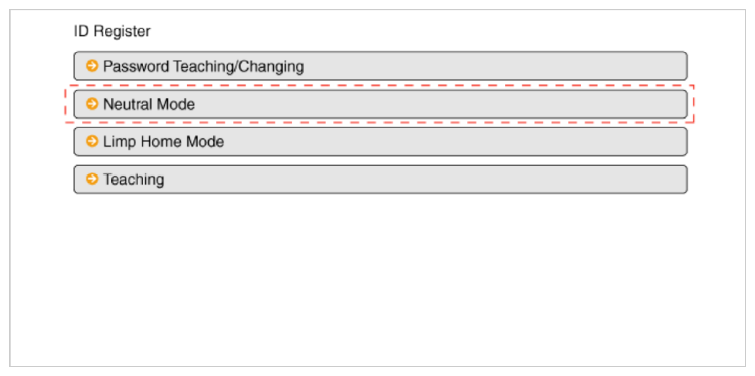

Fig 3: Scan Tool Display - Neutral Mode Select Screen
G09745010Courtesy of KIA MOTORS AMERICA, INC.

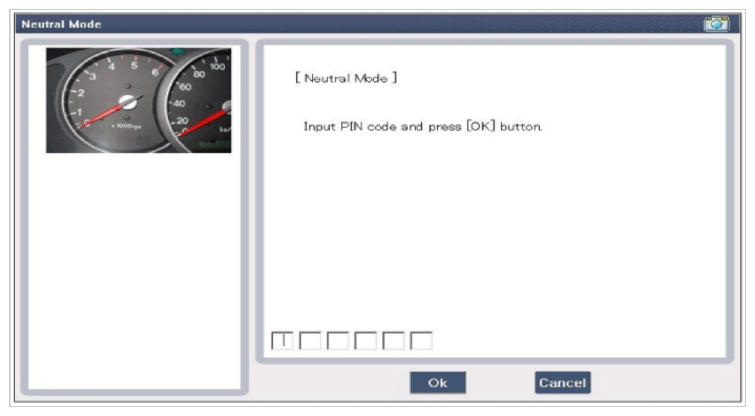

Fig 4: Scan Tool Display - Neutral Mode Input Pin Code Screen (1 Of 2)
G09745011Courtesy of KIA MOTORS AMERICA, INC.

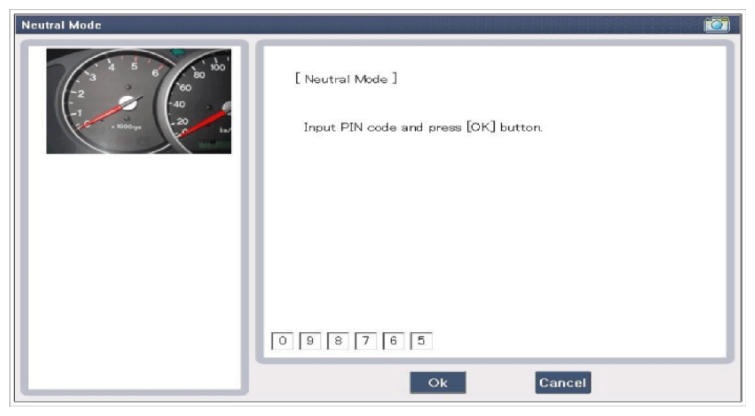

Fig 5: Scan Tool Display - Neutral Mode Input Pin Code Screen (2 Of 2)
G09745012Courtesy of KIA MOTORS AMERICA, INC.

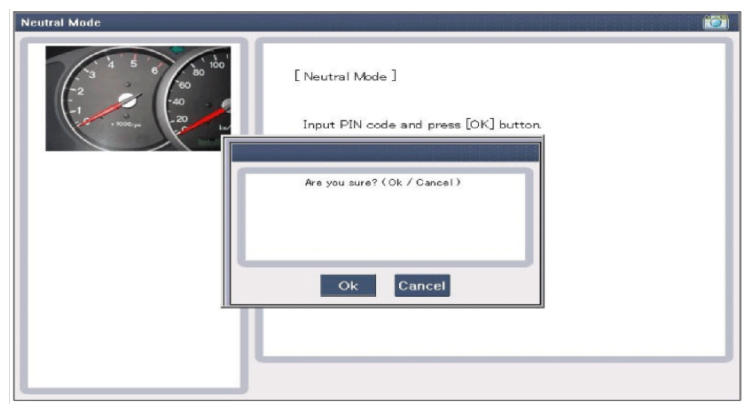

Fig 6: Scan Tool Display - Neutral Mode Pin Code Confirmation Screen
G09745013Courtesy of KIA MOTORS AMERICA, INC.

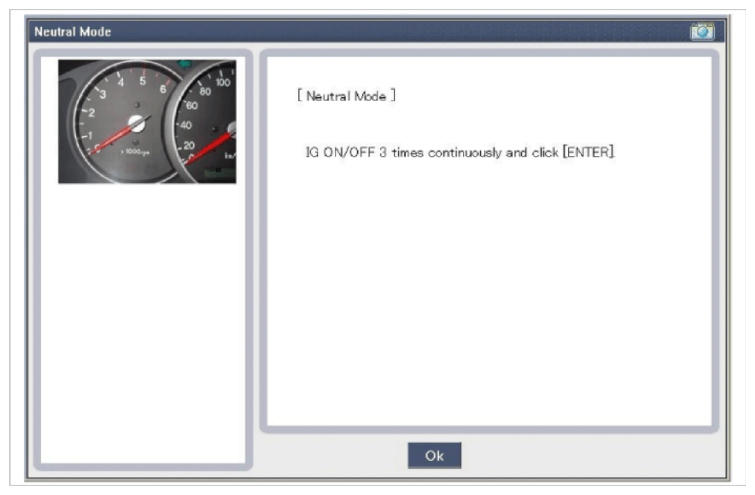

Fig 7: Scan Tool Display - Neutral Mode IG On/Off Screen
G09745014Courtesy of KIA MOTORS AMERICA, INC.

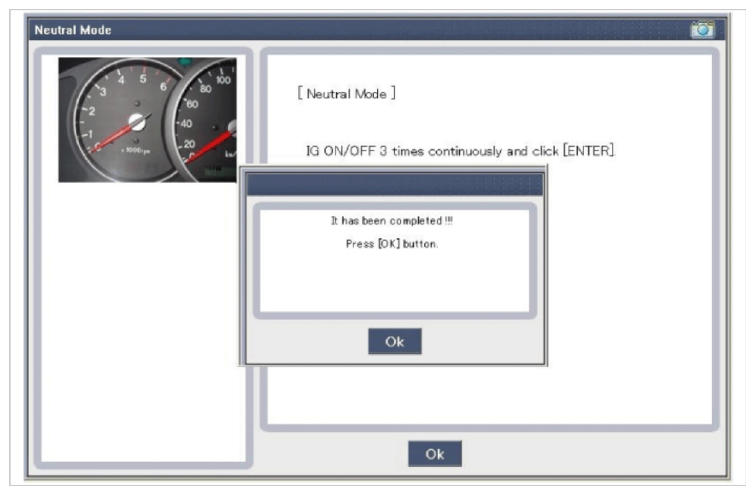

Fig 8: Scan Tool Display - Neutral Mode Completed Screen
G09745015Courtesy of KIA MOTORS AMERICA, INC.

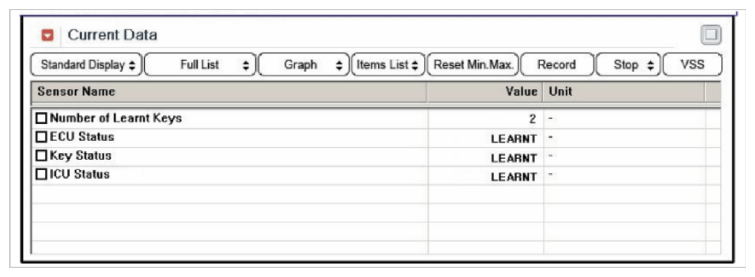

Fig 9: Scan Tool Display - Current Data Status Screen
G09745016Courtesy of KIA MOTORS AMERICA, INC.
