Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
    CAUTION: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "RELEASE RESIDUAL PRESSURE IN FUEL LINE " work.
  3. Disconnect the injector connector (A).
  4. Disconnect the fuel feed tube quick-connector (B).
  5. Remove the installation bolt (C), and then remove the delivery pipe & injector assembly from the engine.

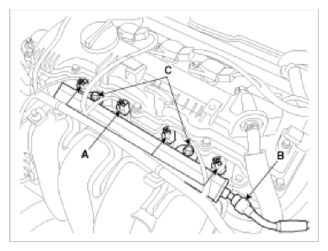

    Fig 1: Delivery Pipe And Injector Assembly (1 Of 2)
    G09745739Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Delivery Pipe And Injector Assembly (2 Of 2)
    G09745740Courtesy of KIA MOTORS AMERICA, INC.
