Signal Waveform & Data

Connect GDS and select Data Analysis.
After warming-up, check following items.

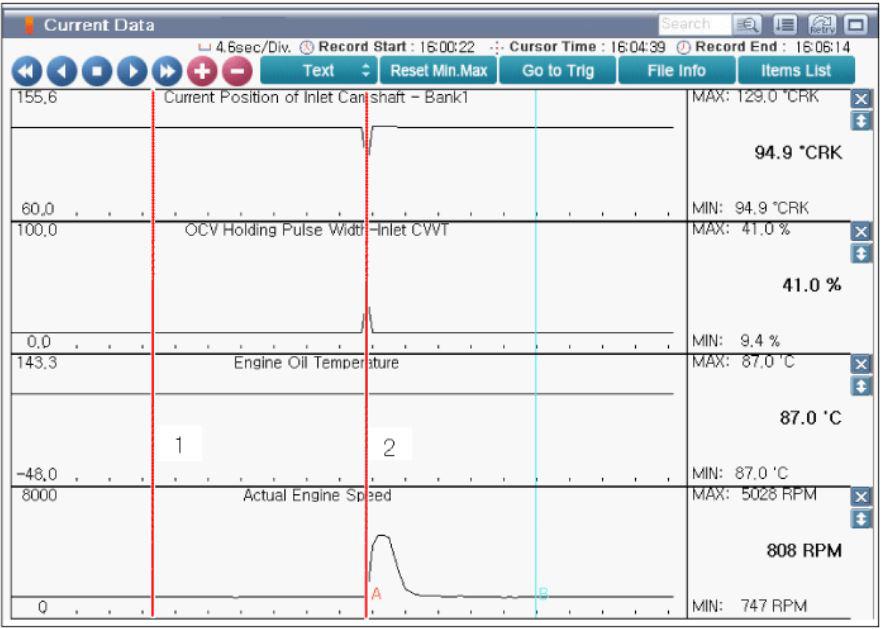

Fig 1: Intake Camshaft Waveforms
Courtesy of KIA MOTORS AMERICA, INC.

(1) Normal Current Data at idle: "Current position of inlet Camshaft - bank1": Approx. 128° CRK, "OCV holding pulse width-inlet CVVT": Approx. 9.4%

(2) Normal Current Data at acceleration: "Current position of inlet Camshaft - bank1": Approx. 95° CRK, "OCV holding pulse width-inlet CVVT": Approx. 41.0%
