Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Engine start.
3. Check input, output value and status of ISG system. (TPS, ECTS, RPM, Clutch S/W, Door S/W etc.)

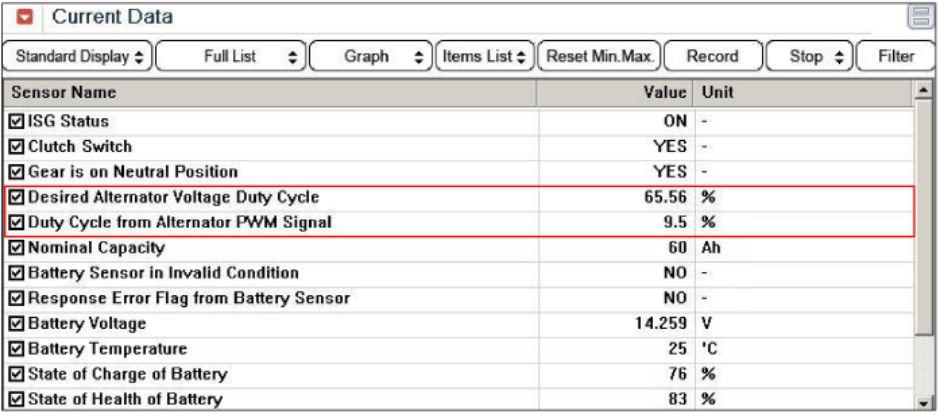

   Fig 1: GDS Current Data Sreen

   Courtesy of KIA MOTORS AMERICA, INC.
4. Are the parameters displayed correctly?

YES

• Fault is intermittent caused by poor contact in the sensor's and/or PCM/ECM's connector or was repaired and PCM/ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, orrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

• Go to "TERMINAL AND CONNECTION INSPECTION " procedure.
