Signal Waveform & Data

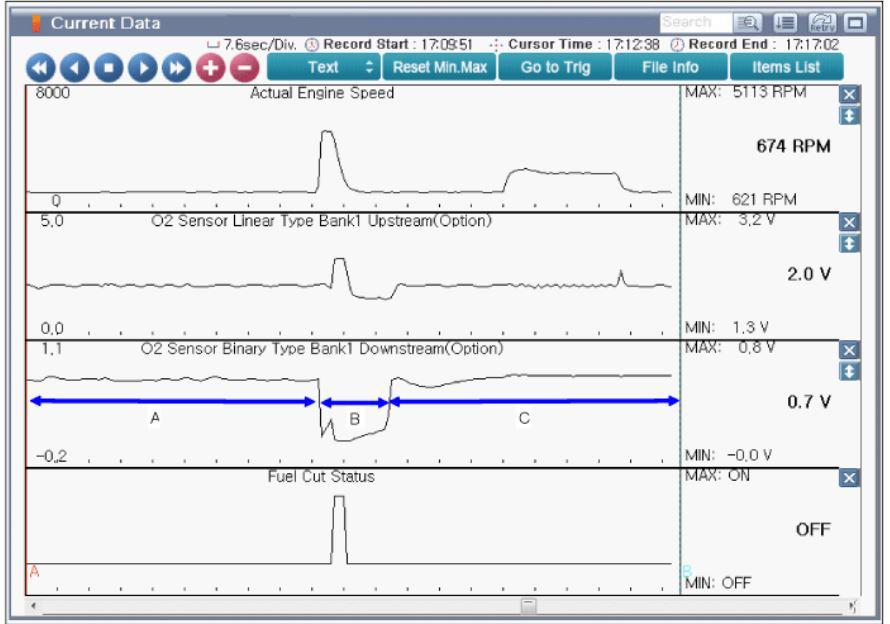

Fig 1: O2 Sensor Waveforms (Normal, Fluctuation & Recovery)
Courtesy of KIA MOTORS AMERICA, INC.
Sector A: Signal Normal
Sector B: Signal Fluctuation by rapid acceleration
Sector C: Signal Recovery
Courtesy of KIA MOTORS AMERICA, INC.
