Starting System: Troubleshooting

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

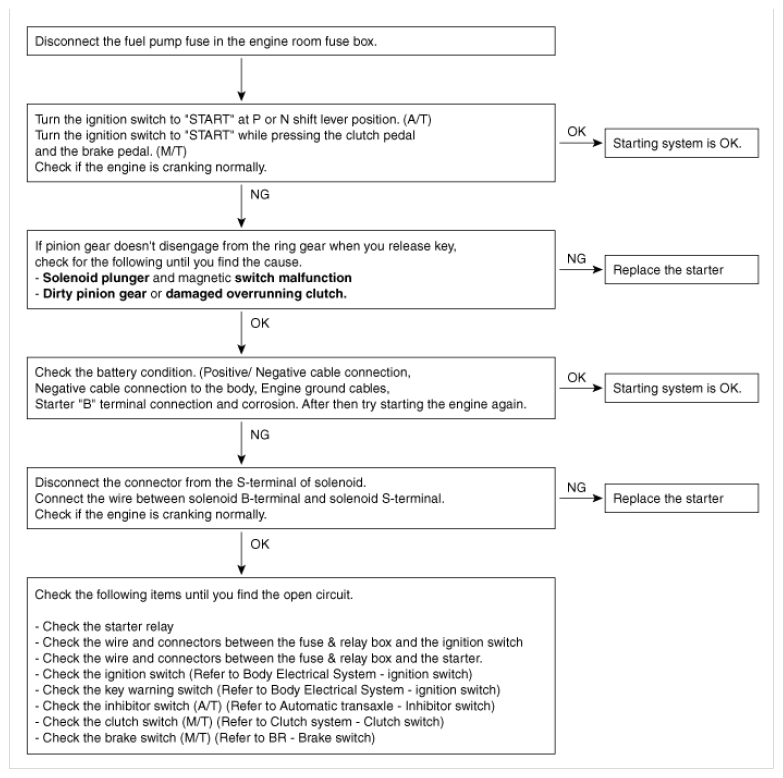

Fig 1: Troubleshooting Workflow Chart
G09742825Courtesy of KIA MOTORS AMERICA, INC.
